Tape 80

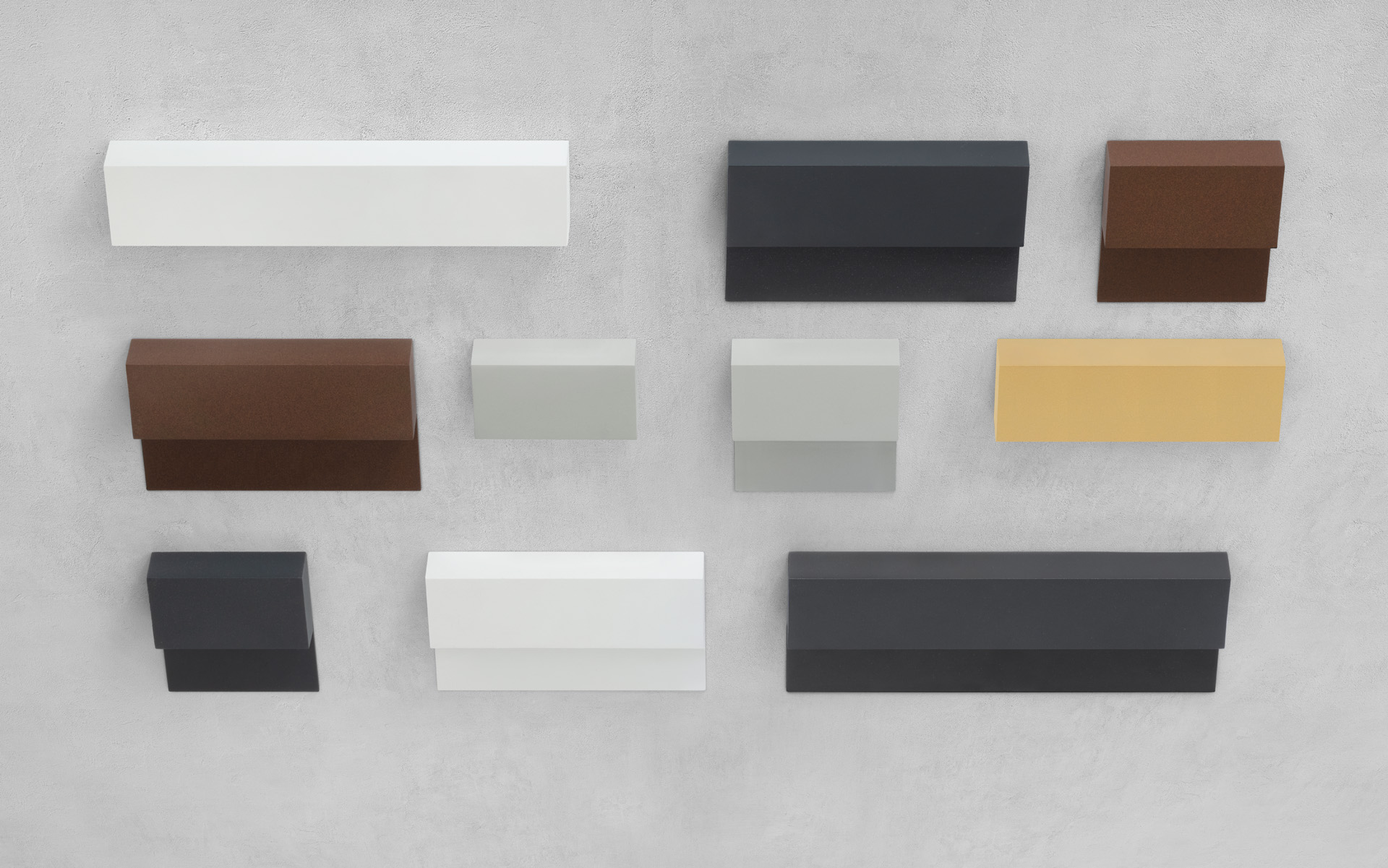

Available colors

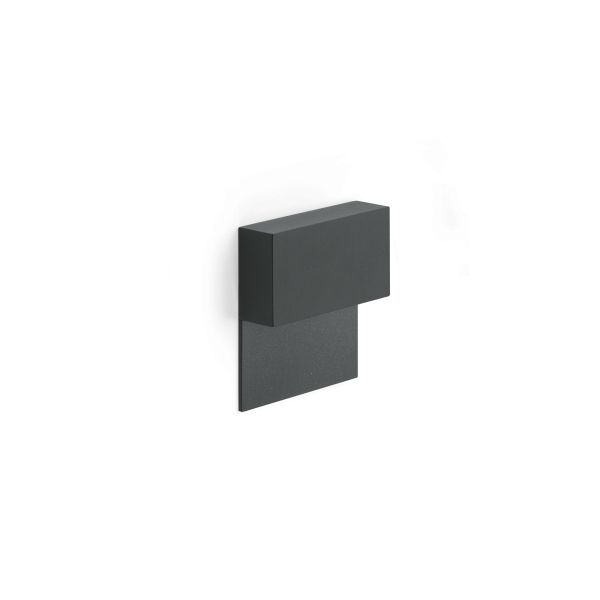

Tape 80

Also suitable for outdoor use. Die-cast primary aluminium body EN-AB46100; high resistance to oxidation thanks to cataphoresis treatment and painting with polyester resins stabilised against UV rays.
Satin-finish toughened glass diffuser. Supplied with 0,65m H03VVH2-F cable. Wall or standard box fixing bracket in AISI 316L steel. Product supplied with water-stop device to protect it from water and humidity infiltration.

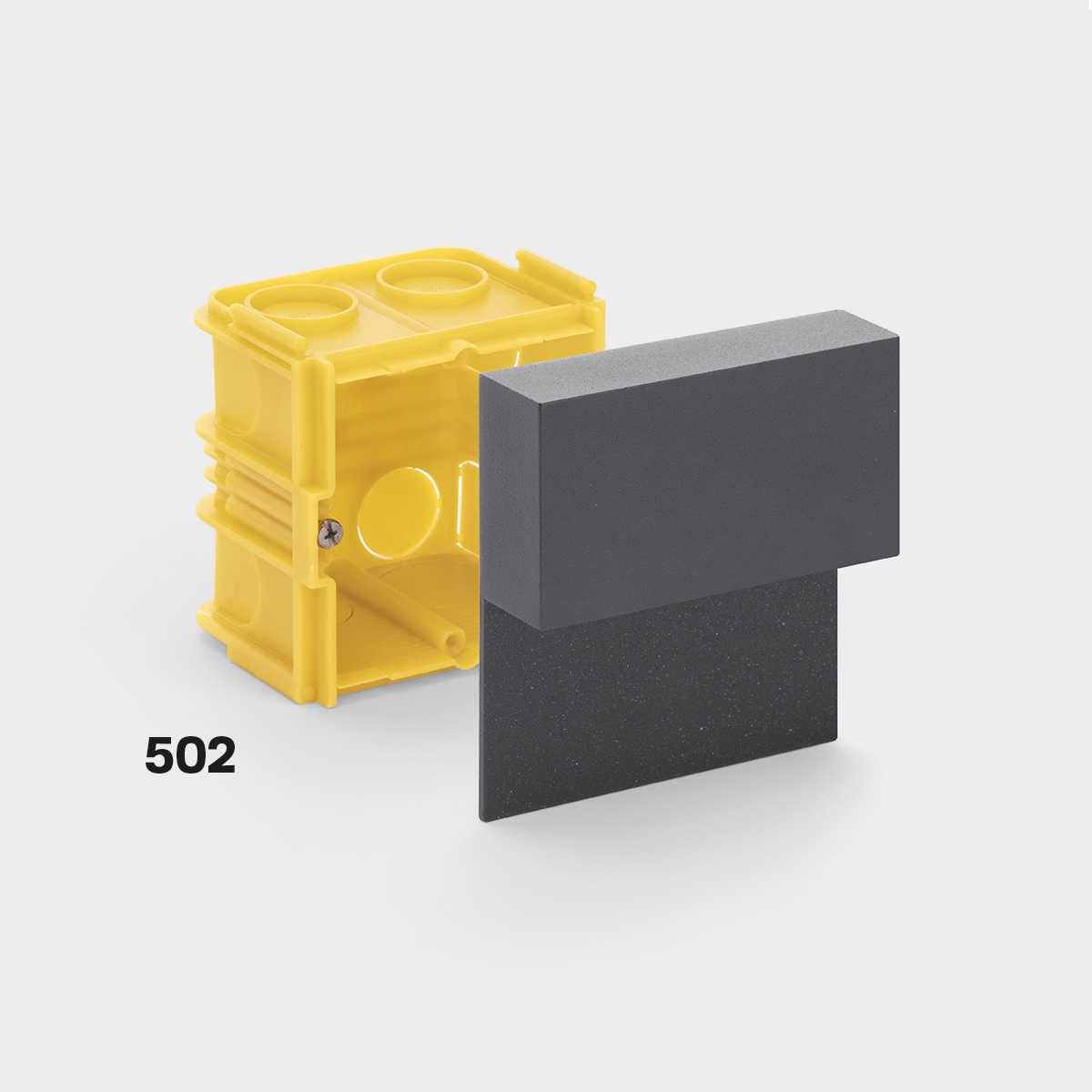

Power supply 24V. External driver housed in standard 502 / 503 / 504 / 506L recessed boxes.
Tape 220: also available in LED AC direct, phasecut dimmable.
LED 4000K (N), 3000K (3) or 2700K (2). No photobiological risk, RG0 risk group (EN62471).
IP 66
Outdoor e waterproof
Sea Treatment
Sea Treatment
Dimmable
Dimmable
Aquastop
Aquastop
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Frosted glass
Tape 80
  • IP 66
  • IK 06 1J xx3
  • CE
Codes LL14512: Kit consisting of Tape 80 + LB1070068 (driver IP66)
Codes LL14522: Kit consisting of Tape 80 + recess box 502 LB1250001 + LB1070068 (driver IP66)
LED
W LM REAL LM COL. GLASS
CODE
Download
2 290 248
CL.III 24V 24V
White RAL 9003
LL14501W
Light Grey RAL 7044
LL14501L
Dark Grey RAL 7021
LL14501D
Corten
LL14501K
Gold
LL14501Z
Black RAL 9005
LL14501B
2 290 248
CL.III Remote power supply 24V 24V REMOTE Kit Kit DRIVER IP67
White RAL 9003
LL14511W
Light Grey RAL 7044
LL14511L
Dark Grey RAL 7021
LL14511D
Corten
LL14511K
Gold
LL14511Z
Black RAL 9005
LL14511B
2 290 248
CL.III Remote power supply 24V 24V REMOTE Kit Kit DRIVER IP67 + BOX
White RAL 9003
LL14521W
Light Grey RAL 7044
LL14521L
Dark Grey RAL 7021
LL14521D
Corten
LL14521K
Gold
LL14521Z
Black RAL 9005
LL14521B
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

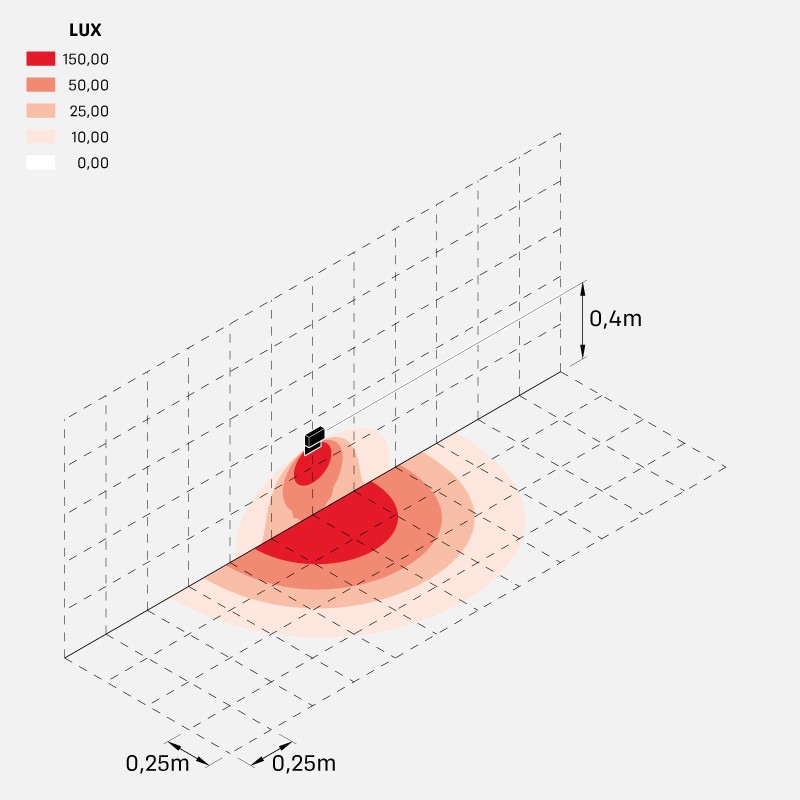

Lighting simulations
