EVERYDAY
LIGHT
Tape 140
Available colors

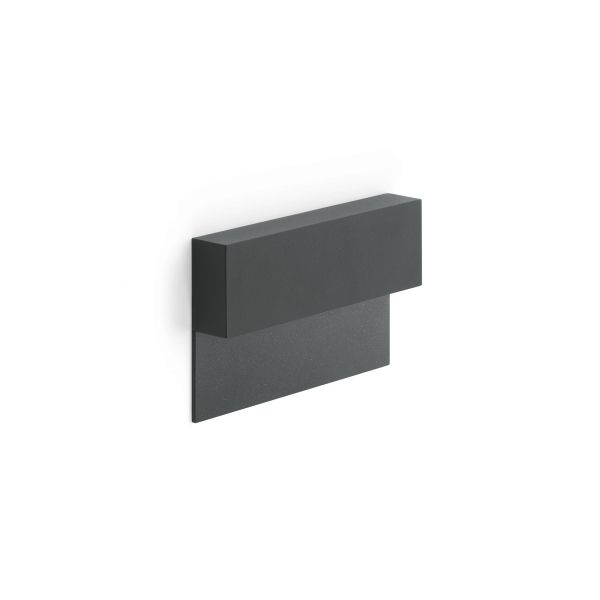

Tape 140

Also suitable for outdoor use. Die-cast primary aluminium body EN-AB46100; high resistance to oxidation thanks to cataphoresis treatment and painting with polyester resins stabilised against UV rays.
Satin-finish toughened glass diffuser. Supplied with 0,65m H03VVH2-F cable. Wall or standard box fixing bracket in AISI 316L steel. Product supplied with water-stop device to protect it from water and humidity infiltration.

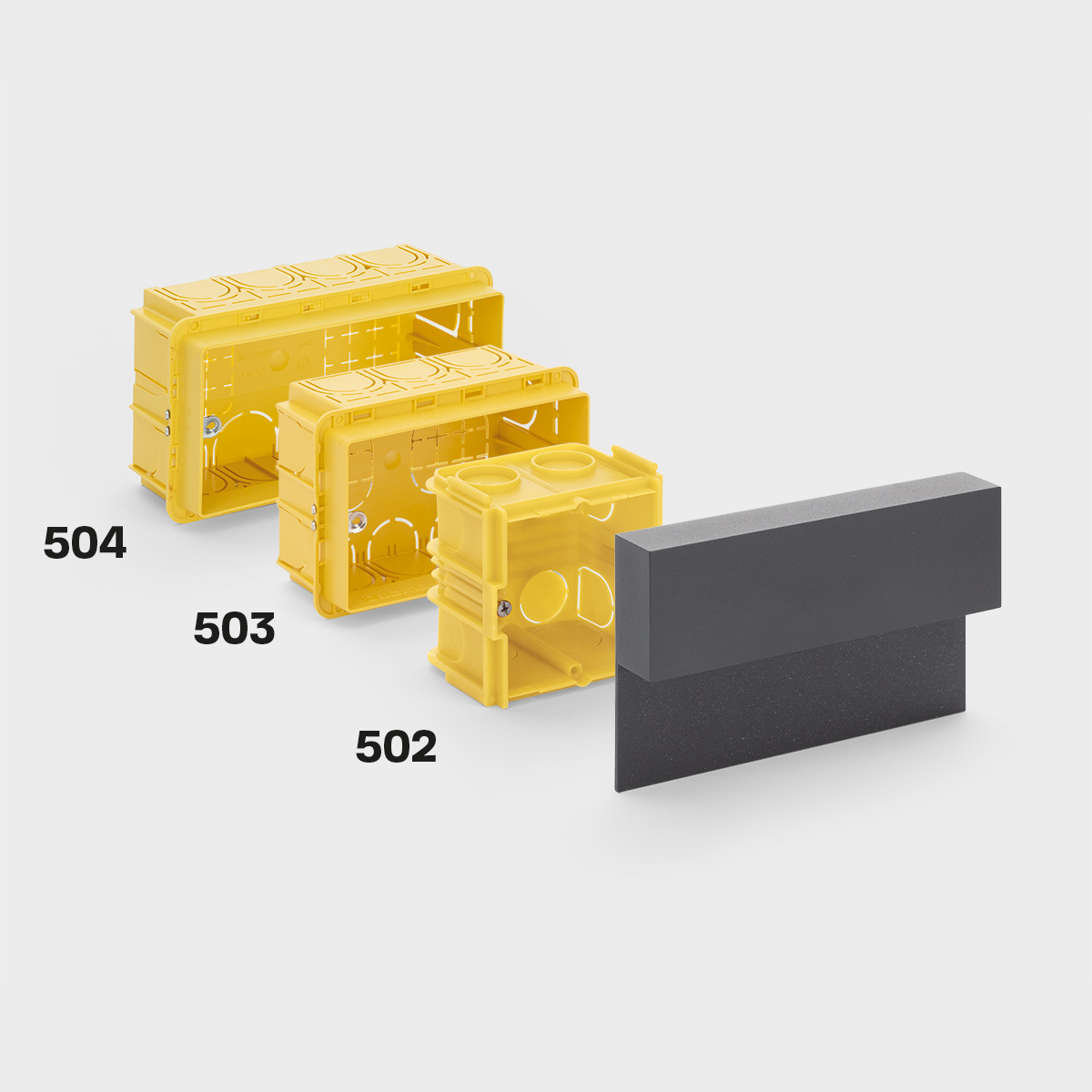

Power supply 24V. External driver housed in standard 502 / 503 / 504 / 506L recessed boxes.
Tape 220: also available in LED AC direct, phasecut dimmable.
LED 4000K (N), 3000K (3) or 2700K (2). No photobiological risk, RG0 risk group (EN62471).
IP 66
Outdoor e waterproof
Sea Treatment
Sea Treatment
Dimmable
Dimmable
Aquastop
Aquastop
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Frosted glass

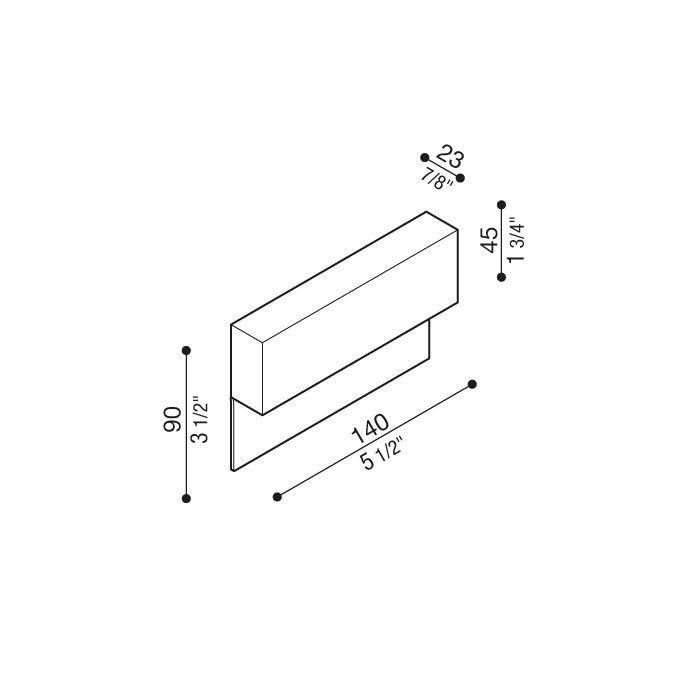

Tape 140
  • IP 66
  • IK 06 1J xx3
  • CE
Codes LL14512: Kit consisting of Tape 140 + LB1070068 (driver IP66)
Codes LL14522: Kit consisting of Tape 140 + recess box 503 LB11660 + LB1070068 (driver IP66)
LED
W LM REAL LM COL. GLASS
CODE
Download
4 590 419
CL.III 24V 24V
White RAL 9003
LL14502W
Light Grey RAL 7044
LL14502L
Dark Grey RAL 7021
LL14502D
Corten
LL14502K
Gold
LL14502Z
Black RAL 9005
LL14502B
4 590 419
CL.III Remote power supply 24V 24V REMOTE Kit Kit DRIVER IP67
White RAL 9003
LL14512W
Light Grey RAL 7044
LL14512L
Dark Grey RAL 7021
LL14512D
Corten
LL14512K
Gold
LL14512Z
Black RAL 9005
LL14512B
4 590 419
CL.III Remote power supply 24V 24V REMOTE Kit Kit DRIVER IP67 + BOX
White RAL 9003
LL14522W
Light Grey RAL 7044
LL14522L
Dark Grey RAL 7021
LL14522D
Corten
LL14522K
Gold
LL14522Z
Black RAL 9005
LL14522B
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

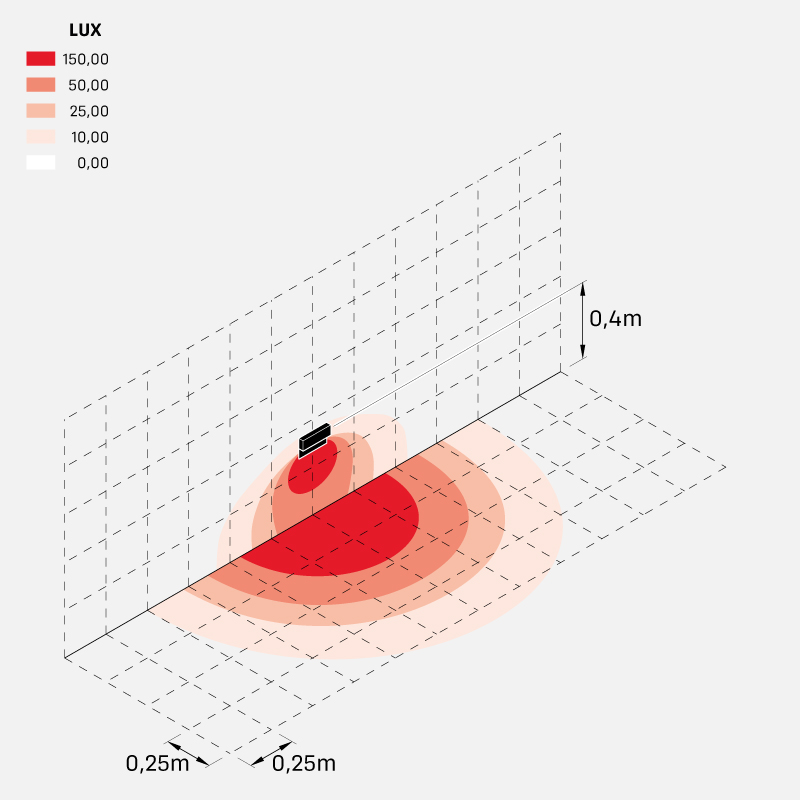

Lighting simulations

tape_140
