EVERYDAY
LIGHT
Tag 210
Available colors
White RAL 9010 Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten

Tag 210

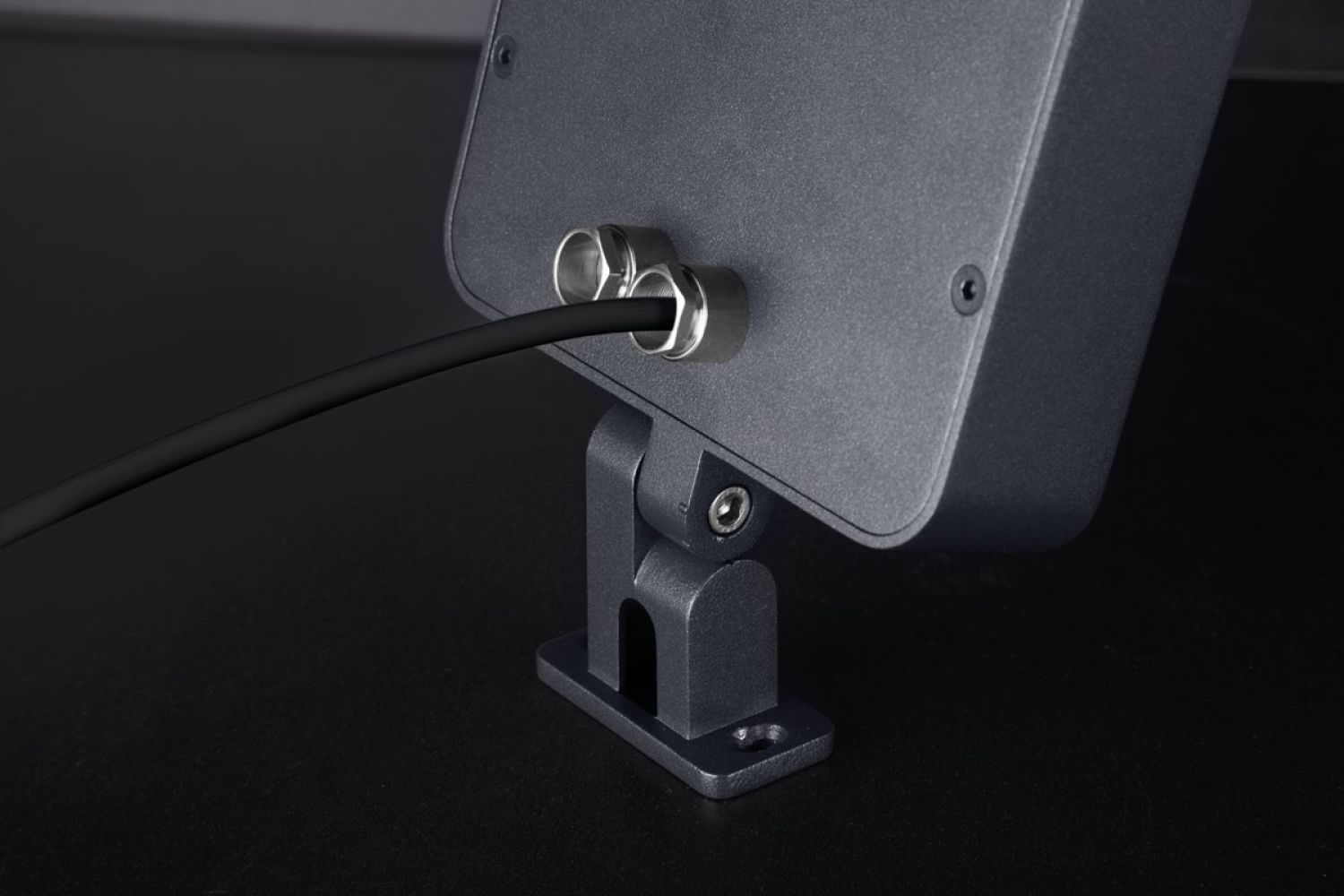

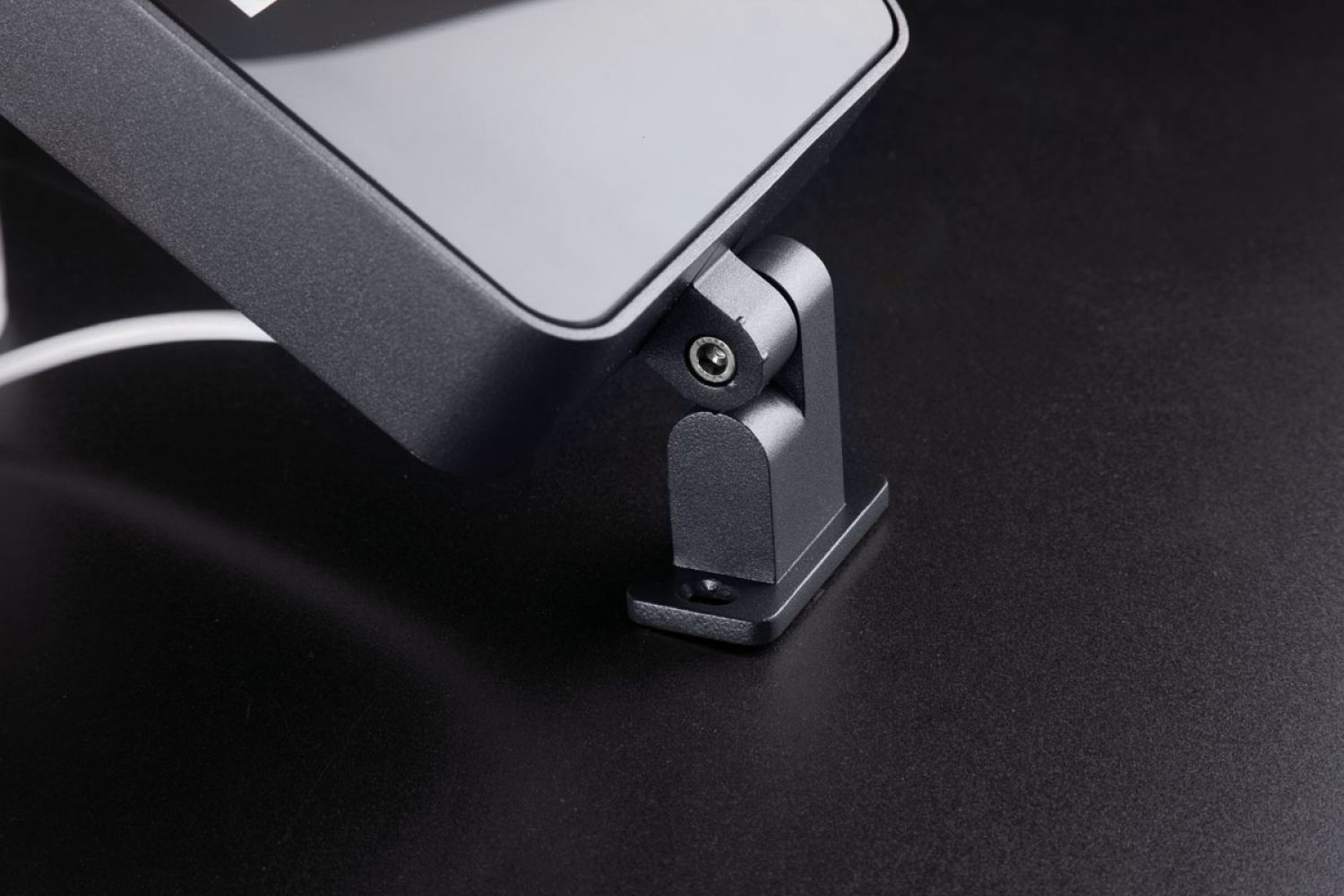

Also suitable for outdoor use. Die-cast aluminium body and joint; highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminium reflector. Provided with 1m prewired power cable H05RN-F. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts. 180° angle adjustment.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Pre-wired
Pre-wired
Sea Treatment on request
Sea Treatment on request
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Ask for information

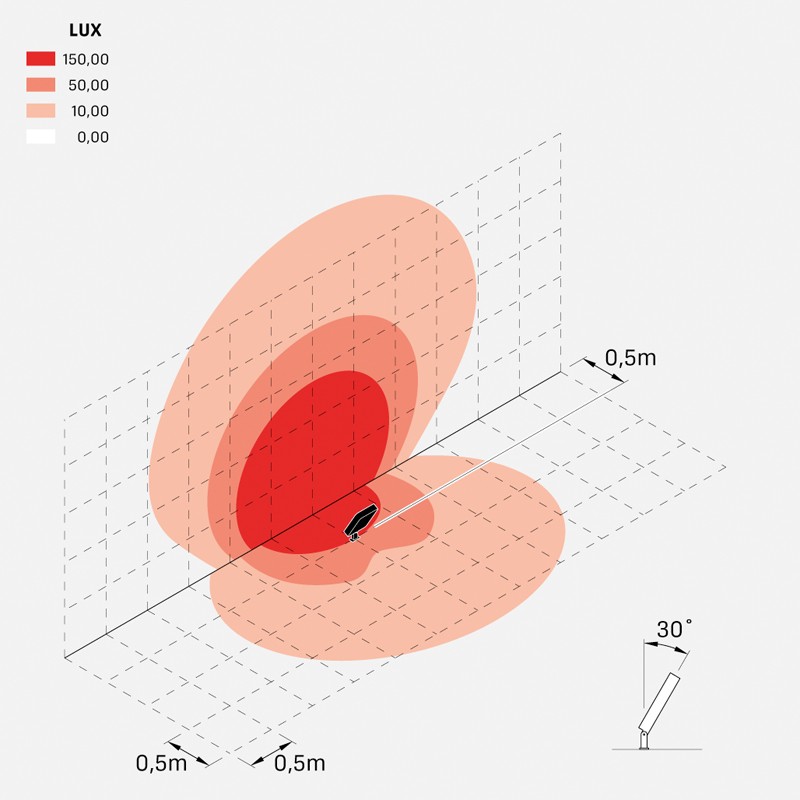

Lighting simulations
Tag 210
  • IP 66
  • IK 06 1J xx3
  • CE
Prearranged for double power input. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471). BORDO MARE: add S to the end of the selected code including LED colour to have the product supplied with sea treatment against salt spray.
Light beam
simmetrico
Tag 210
LED
W LM REAL LM COL. TRASP.
CODE 		Download
25 3500 2585
CL.I LED version with integrated ballast 220-240 V
White RAL 9010
LL115100
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey High Tech RAL 9006
LL115101
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LL115102
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LL115103
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

tag_210
tag_210
