EVERYDAY
LIGHT
Ross 330
Available colors

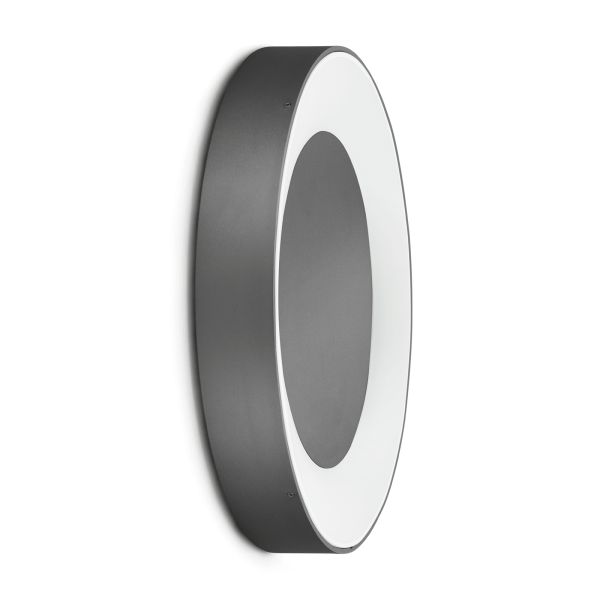

Ross 330

Also suitable for outdoor use. Integrated 220 - 240V ballast and latest generation Led modules. Polycarbonate base, injection moulded in-house. Very thick polycarbonate diffuser with triple UV stabilisation and PolyGLASS finish, injection moulded in-house.
Silicone gaskets to maintain IP66 rating.
Closing system by means of hex socket set screws size 2 mm.
Securing kit included to maintain IP rating.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
Ross 330
  • IP 66
  • IK 10 20J xx9
  • CE
LED
W LM REAL LM COL. POLIGLASS
CODE
Download
25 3000 1842
CL.II LED version with integrated ballast 220-240 V
White from moulding
LL124010
Black from moulding
LL124011
Grey High Tech RAL 9006
LL124012
Grey anthracite RAL 7021
LL124013
Corten
LL124014
25 3000 1842
CL.II LED version with integrated ballast 220-240 V Motion sensor included
White from moulding
LL124015
Black from moulding
LL124016
Grey High Tech RAL 9006
LL124017
Grey anthracite RAL 7021
LL124018
Corten
LL124019
25 3000 1842
CL.II LED version with integrated ballast 220-240 V Maintained emergency 3h
White from moulding
LL124020
Black from moulding
LL124021
Grey High Tech RAL 9006
LL124022
Grey anthracite RAL 7021
LL124023
+ LED 5W em.3H - 144lm Corten
LL124024
25 3000 1842
CL.II LED version with integrated ballast 220-240 V Day Night sensor
White from moulding
LL124035
Black from moulding
LL124036
Grey High Tech RAL 9006
LL124037
Grey anthracite RAL 7021
LL124038
Corten
LL124039
25 3000 1842
CL.II LED version with integrated ballast 220-240 V Corridor function
White from moulding
LL124060
Black from moulding
LL124061
Grey High Tech RAL 9006
LL124062
Grey anthracite RAL 7021
LL124063
Corten
LL124064
25 3000 1842
CL.II LED version with integrated ballast 220-240 V DALI2
White from moulding
LM124010
Black from moulding
LM124011
Grey High Tech RAL 9006
LM124012
Grey anthracite RAL 7021
LM124013
Corten
LM124014
25 3000 1842
CL.II LED version with integrated ballast 220-240 V PUSH 1-10V
White from moulding
LD124010
Black from moulding
LD124011
Grey High Tech RAL 9006
LD124012
Grey anthracite RAL 7021
LD124013
Corten
LD124014
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
