High power
lighting division
Rol 600

Rol 600

New
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Dimmable
Dimmable
Anodisation
Anodisation
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Transparent glass
Available colors
Black Anodized Aluminium
Ask for information
Lighting simulations
Rol 600
  • IP 66
  • IK 10 20J xx9
  • CE
Double cable entry at the back.
Rol 600
LED
W LM REAL LM COL. CODE Download
34 4125 3130
CL.I LED version with integrated ballast 220-240 V
Black Anodized Aluminium
LL156060
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
34 4125 3130
CL.I LED version with integrated ballast 220-240 V DALI2
Black Anodized Aluminium
LM156060
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
OPTIC
S
30°
M
50°
E
12 X 35°
W
Wall-washer
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

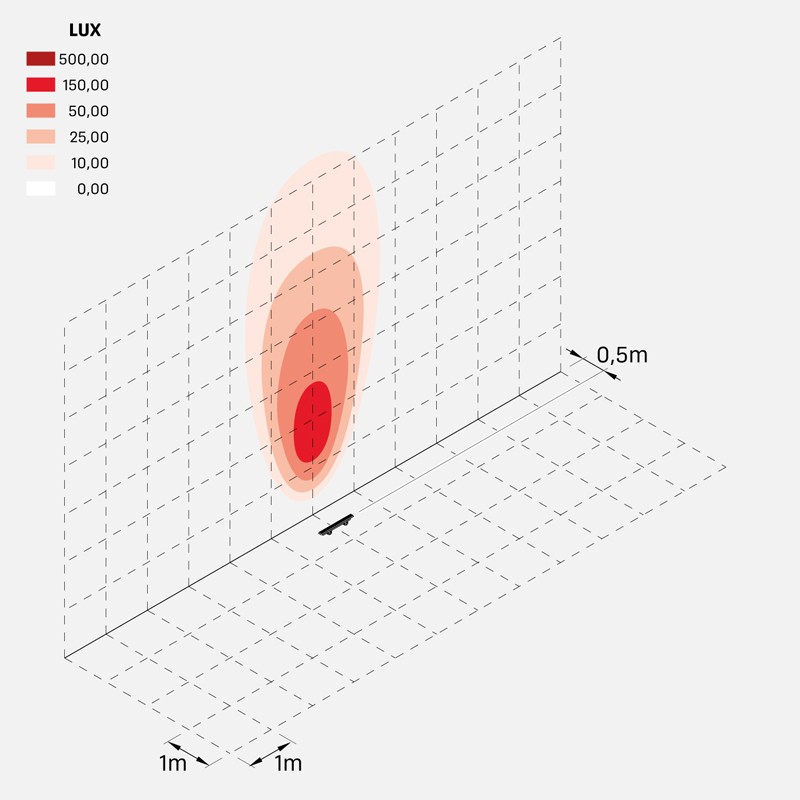

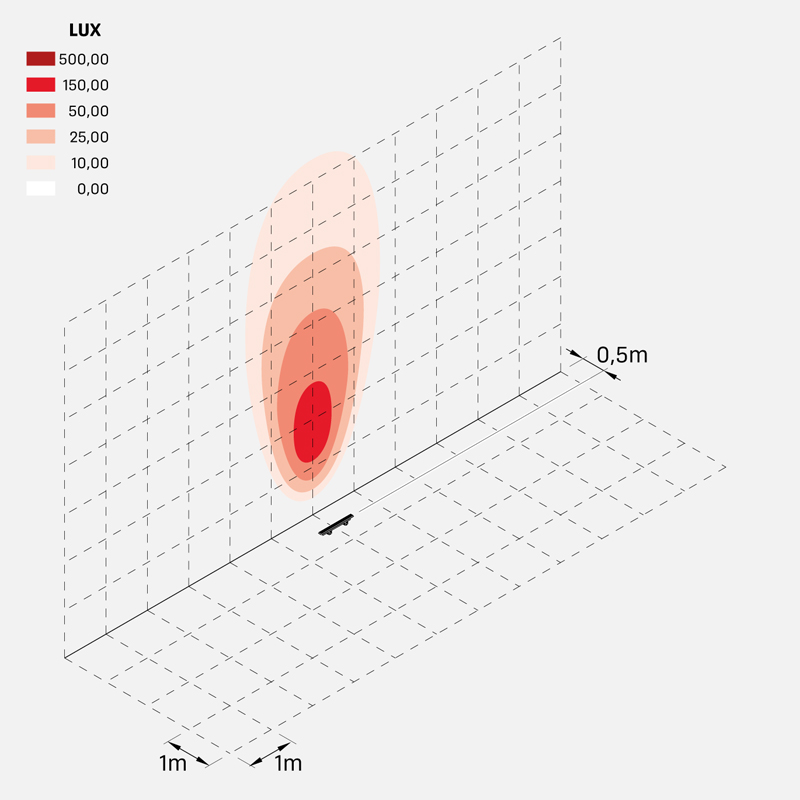

rol_600_34W_optic_S
rol_600_34W_optic_S

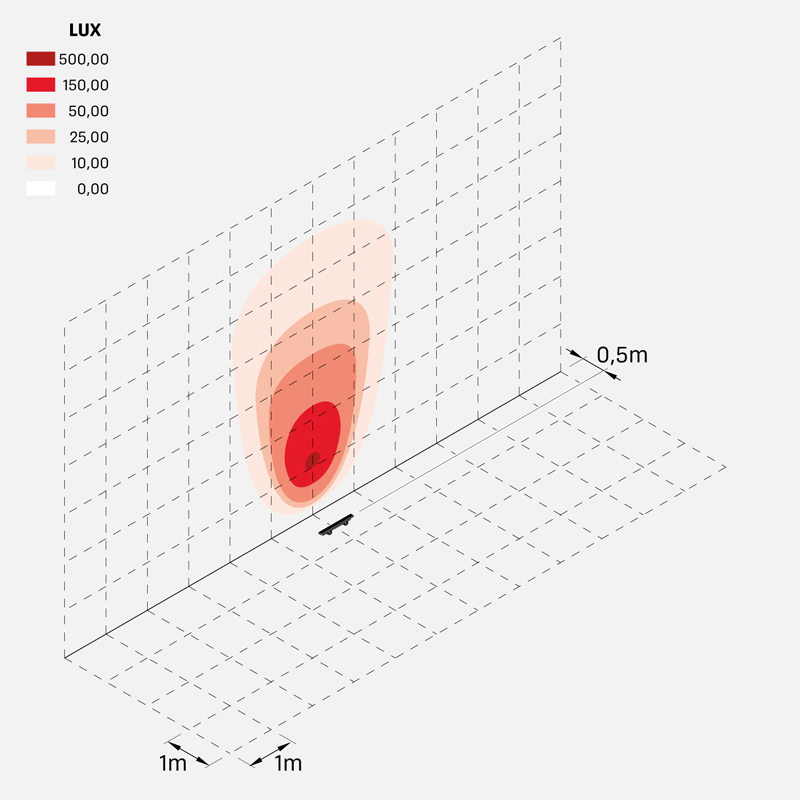

rol_600_34W_optic_M
rol_600_34W_optic_M

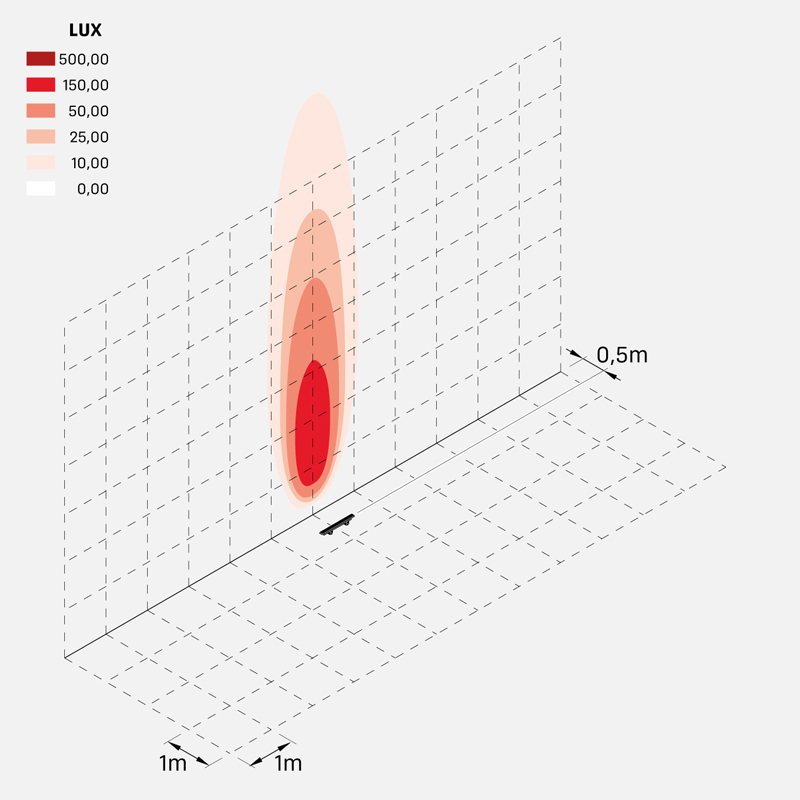

rol_600_34W_optic_E
rol_600_34W_optic_E

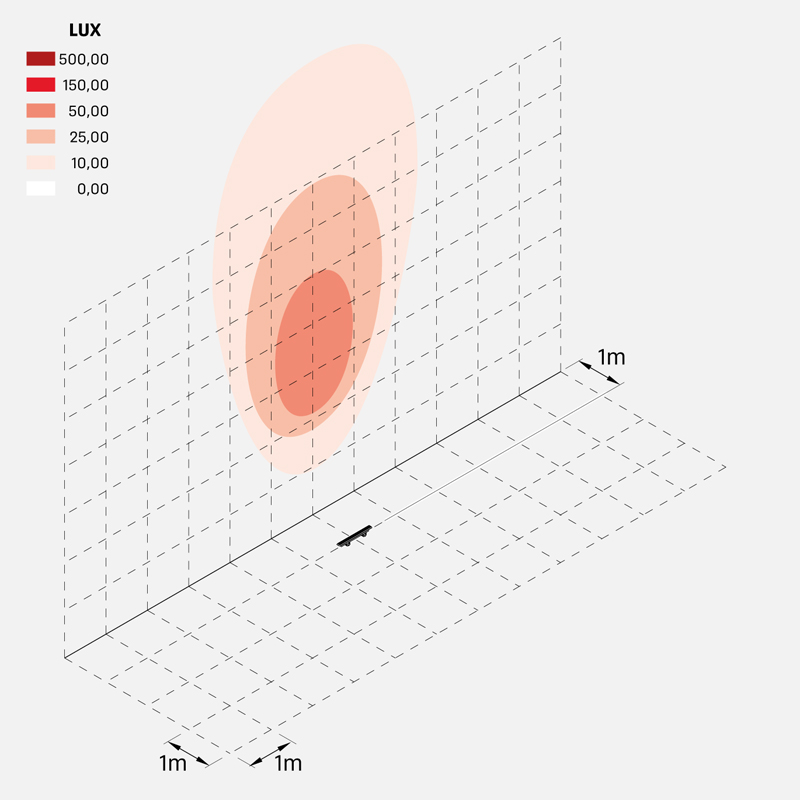

rol_600_34W_optic_W
rol_600_34W_optic_W
Rol 900 Rol 900 Rol 1200 Rol 1200 In-Rol 600 In-Rol 600 In-Rol 900 In-Rol 900 In-Rol 1200 In-Rol 1200
4-pin male/female connector ON-OFF 4-pin male/female connector ON-OFF 5-pin male/female connector DALI 5-pin male/female connector DALI Female connector + End cap ON-OFF Female connector + End cap ON-OFF Female connector + End cap DALI Female connector + End cap DALI
