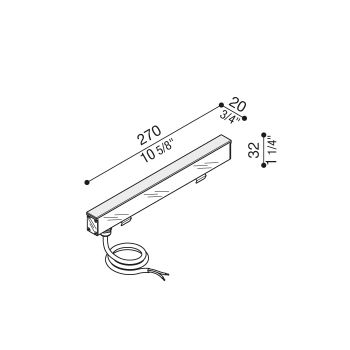

RNC Slim 270

RNC Slim 270

Ideal for recessed ground application, also for drive-over use. Installation by means of a recess box supplied separately. PMMA body and diffuser. Silicone gaskets. Single cable entry at the back. 1m of H05RN-F power supply cable pre-wired and secured by means of a nickel-plated brass cable gland. Product supplied with fixing springs and water-stop device to protect it from water and humidity infiltration.
LED 24V. LED 4000K (N), 3000K (3) or 2700K (2). Ballast not included.
No photobiological risk, RG0 risk group (EN62471).
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Pre-wired
Pre-wired
Dimmable
Dimmable
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA
Ask for information
Lighting simulations
RNC Slim 270
  • IP 67
  • IK 10 20J xx9
  • CE
  • Carrabile/Drive-over Max 2000 Kg
  • Temp. max on diffuser 35°C
RNC Slim 270
LED
W LM REAL LM COL. OPAL.
CODE 		Download
2,5 300 65
CL.III 24V 24V
LL138100
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

rnc_slim_270
rnc_slim_270
RNC 270 RNC 270 RNC 520 RNC 520 RNC 770 RNC 770 RNC 1020 RNC 1020 RNC Slim 520 RNC Slim 520 RNC Slim 770 RNC Slim 770 RNC Slim 1020 RNC Slim 1020 RNC 2020 RNC 2020 RNC Slim 2020 RNC Slim 2020

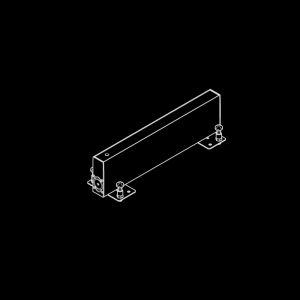

RNC removal keys RNC removal keys Recess box RNC Slim 270 Recess box RNC Slim 270 24V constant voltage driver RNC 24V constant voltage driver RNC Cable type H05RN-F 2x0,75 Cable type H05RN-F 2x0,75
