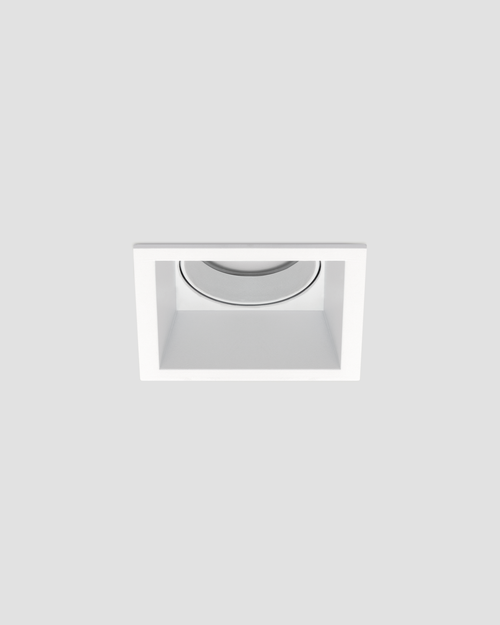

Pop 60 Q
Available colors

Pop 60 Q

Suitable for installation in plasterboard ceilings for indoor and outdoor use.
Polycarbonate body.
Die-cast primary aluminium heat sink EN-AB44100.
Transparent polycarbonate diffuser.
Recessed installation by means of springs.
External power supply. Supplied with 0,25m H03VVH2-F cable.
Dimming available.
Supplied with extra adapter to cover larger recesses.
A4 or AISI 316L stainless steel hardware.
LL codes: supplied with external driver. Direct power supply 220-240V.
LZ codes: power supply excluded.
4000K (N), 3000K (3) and 2700K (2) LED.
No photobiological risk, RG0 risk group exempt (EN62471).
IP 65
Outdoor e waterproof
Pre-wired
Pre-wired
CRI 90
CRI 90
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
Pop 60 Q
  • IP 65
  • IK 07 2J xx5
  • CE
Codes LL14601A and LZ14601A in All Black version with black adapter ring.
LED
W LM REAL LM COL. TRASP.
CODE
Download
7 1000 840
CL.III 500mA - 14V 500mA - 14V
White
LZ14601W
White - Black RAL 9005
LZ14601B
White - Gold
LZ14601Z
White - Copper
LZ14601U
White - Silver
LZ14601G
All Black
LZ14601A
7 1000 840
CL.III 220-240V REMOTE DRIVER INCLUDED REMOTE DRIVER INCLUDED
White
LL14601W
White - Black RAL 9005
LL14601B
White - Gold
LL14601Z
White - Copper
LL14601U
White - Silver
LL14601G
All Black
LL14601A
Complete the CODE
OPTIC
S
25°
M
45°
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K
D
Dim to warm 1900K-3500K, only for LZ codes

Lighting simulations

pop_60q_d
pop_60q_d
pop_60q_m
pop_60q_m
pop_60q_s
pop_60q_s
