EVERYDAY
LIGHT

Pin T

Suitable for indoor and outdoor use.
Body made of EN – AB44100 die-cast aluminum primary alloy; highly resistant to oxidization due to cataphoresis treatment.
Heat tempered and silk-screen printed glass diffuser.
Inaccessible device, provided with 0.20 m of prewired power cable H05RN-F with epoxy resin treatment.
Dimmable Phase cut.
LED 4000K (N), 3000K (3) or 2700K (2). LED AC direct. No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Pre-wired
Pre-wired
Sea Treatment
Sea Treatment
Dimmable
Dimmable
Quick installation
Quick installation
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Available colors
Black serigraphy Grey High Tech Serigraphy Corten serigraphy

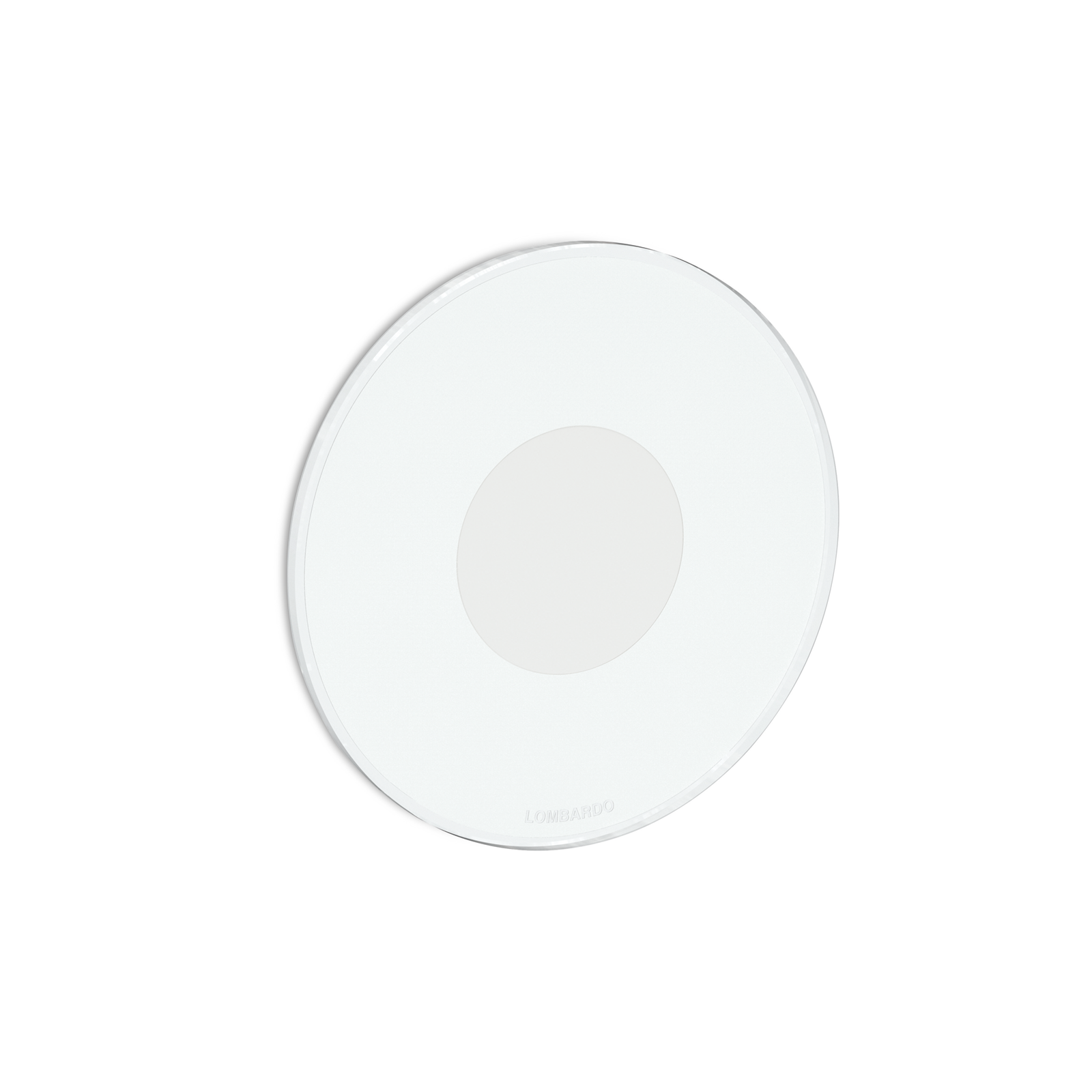

Pin T
  • IP 66
  • IK 07 2J xx5
  • CE
Codes LL12510: Kit consisting of Pin T + recess box 502 LB1250001.
LED
W LM REAL LM COL. TRASP.
CODE
Download
2 200 56
CL.I AC DIRECT AC DIRECT
LL125000
Black serigraphy
LL125001
Grey High Tech Serigraphy
LL125002
Corten serigraphy
LL125003
2 200 56
CL.I AC DIRECT AC DIRECT Kit Kit
LL125100
Black serigraphy
LL125101
Grey High Tech Serigraphy
LL125102
Corten serigraphy
LL125103
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

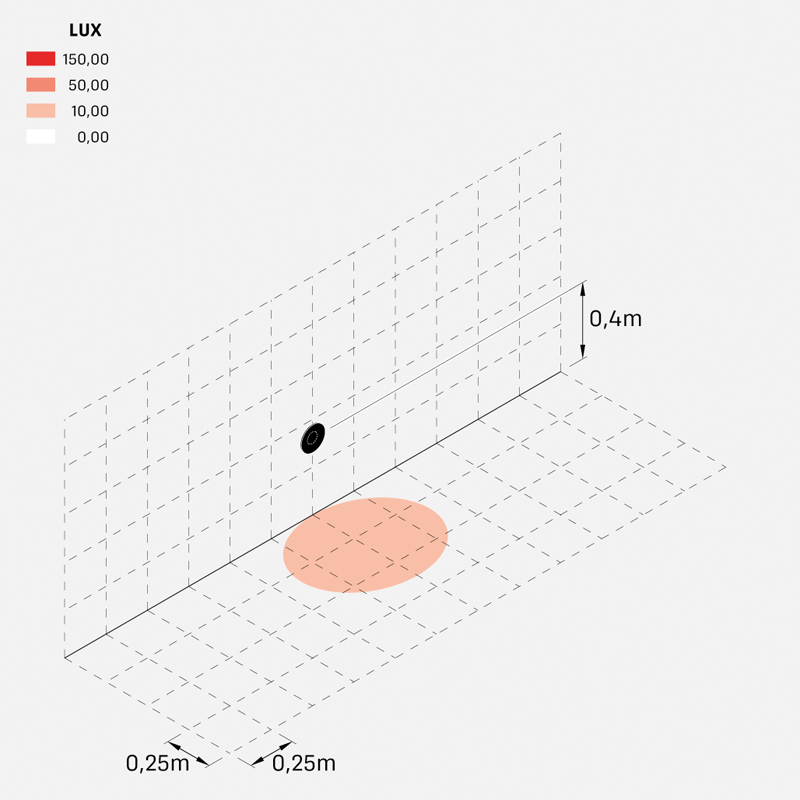

Lighting simulations

pin_t
pin_t
