Noa 50 Top
Available colors

Noa 50 Top

Suitable for outdoor use. Possibility of wall, floor and ceiling installation. Die-cast aluminum body and stem ; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilized polyester resin coating. Tempered and screen-printed glass diffuser. Aluminum reflector. Silicone gaskets to maintain the IP 66 degree. Stainless steel A4 bolts. 90° inclination adjustment and 360° rotation. LED AC Direct, phase cut dimmable. Version with anti-glare filter available. Equipped with overvoltage protection device (1KW).
NOA 50: supplied with G1/2 cable gland, osmotic valve and closing cap. Models suitable for inline wiring. LED 4000K (N), 3000K (3) or 2700K (2). LED AC Direct.
No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Dimmable
Dimmable
Sea Treatment
Sea Treatment
Honeycomb
Honeycomb
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Noa 50 Top
  • IP 66
  • IK 07 2J xx5
  • CE
Optic D not available for Honeycomb version.
LED
W LM REAL LM COL. TRASP.
CODE
Download
9 1000 750
CL.I AC DIRECT AC DIRECT
White RAL 9010
LL133040
Grey High Tech RAL 9006
LL133041
Grey anthracite RAL 7021
LL133042
Corten
LL133043
Black RAL 9005
LL133057
9 1000 500
CL.I AC DIRECT AC DIRECT HONEYCOMB
White RAL 9010
LL133044
Grey High Tech RAL 9006
LL133045
Grey anthracite RAL 7021
LL133046
Corten
LL133047
Black RAL 9005
LL133068
Complete the CODE
OPTIC
D
Diff.
S
25°
M
40°
L
60°
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

noa_50_top_optic_d
noa_50_top_optic_d
noa_50_top_optic_l
noa_50_top_optic_l
noa_50_top_optic_m
noa_50_top_optic_m
noa_50_top_optic_s
noa_50_top_optic_s

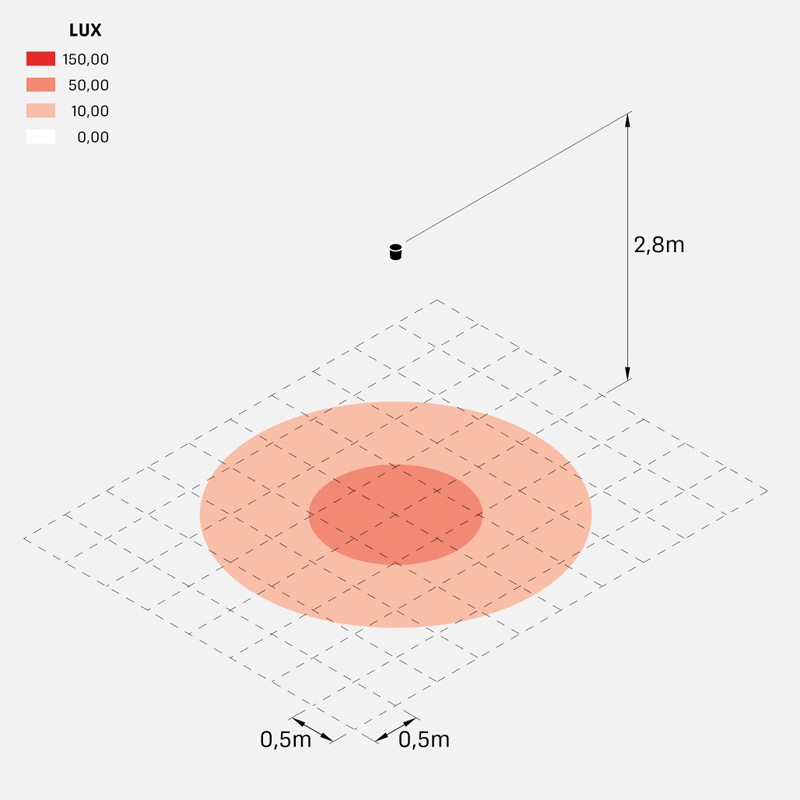

noa_50_top_honey_optic_l
noa_50_top_honey_optic_l

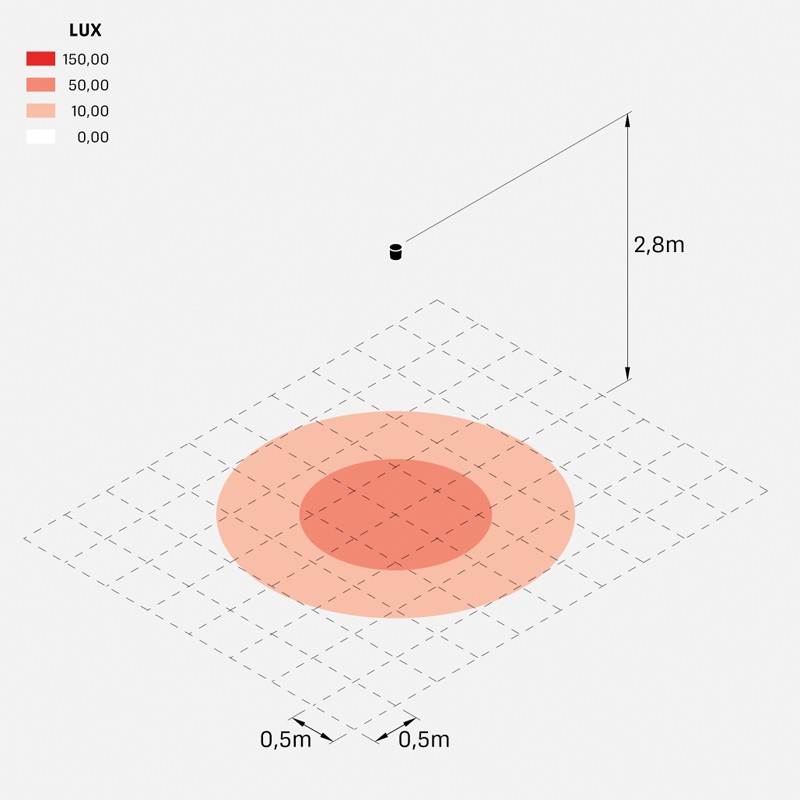

noa_50_top_honey_optic_m
noa_50_top_honey_optic_m

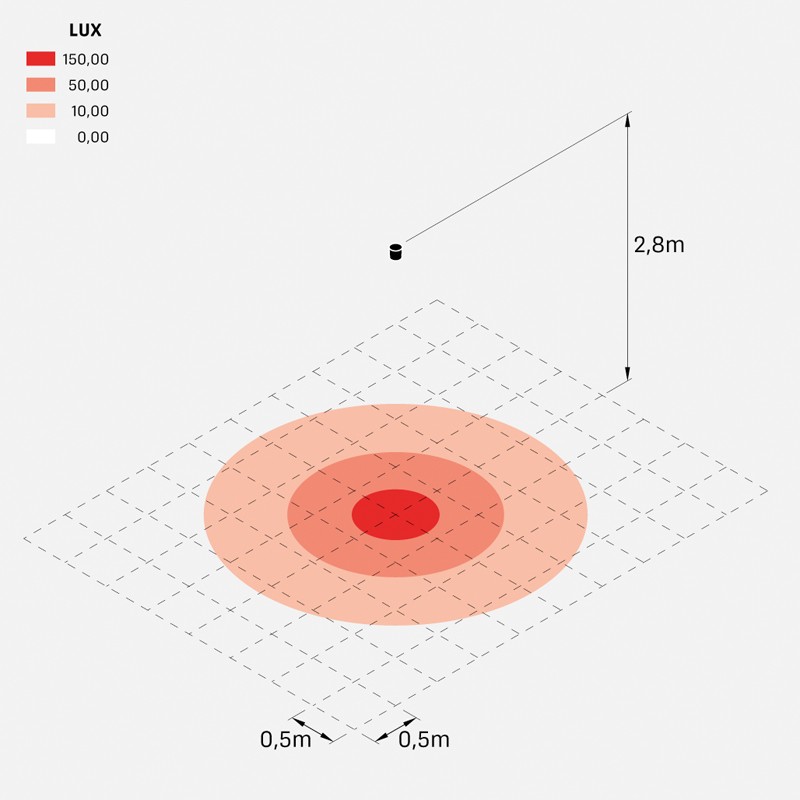

noa_50_top_honey_optic_s
noa_50_top_honey_optic_s
