Noa 100 Wall
Available colors

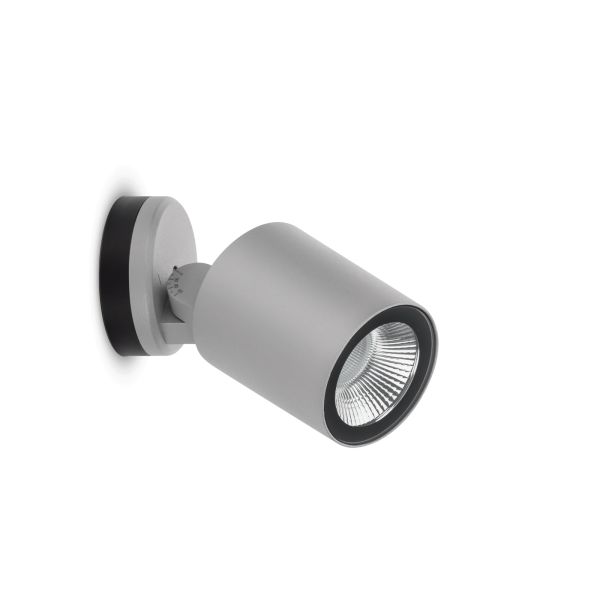

Noa 100 Wall

Suitable for outdoor use. Possibility of wall, floor and ceiling installation. Die-cast aluminum body and stem ; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilized polyester resin coating. Tempered and screen-printed glass diffuser. Aluminum reflector. Silicone gaskets to maintain the IP 66 degree. Stainless steel A4 bolts. 90° inclination adjustment and 360° rotation. LED AC Direct, phase cut dimmable. Version with anti-glare filter available. Equipped with overvoltage protection device (1KW).
NOA 100: supplied with G1/2 cable gland, osmotic valve and closing cap. Models suitable for inline wiring.
LED 4000K (N), 3000K (3) or 2700K (2). LED AC Direct.
No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Dimmable
Dimmable
Sea Treatment
Sea Treatment
Honeycomb
Honeycomb
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass

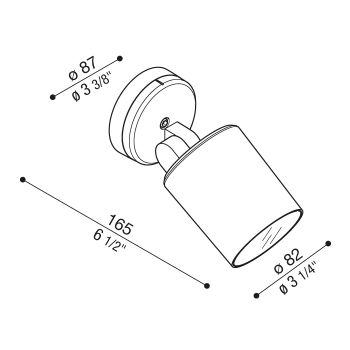

Noa 100 Wall
  • IP 66
  • IK 07 2J xx5
  • CE
Optic D not available for Honeycomb version.
Light beam
Noa 90
Noa 360
LED
W LM REAL LM COL. TRASP.
CODE
Download
16 1750 1200
CL.I AC DIRECT AC DIRECT
White RAL 9010
LL133030
Grey High Tech RAL 9006
LL133031
Grey anthracite RAL 7021
LL133032
Corten
LL133033
Green RAL 6003
LL133034
Black RAL 9005
LL133066
16 1750 800
CL.I AC DIRECT AC DIRECT HONEYCOMB
White RAL 9010
LL133035
Grey High Tech RAL 9006
LL133036
Grey anthracite RAL 7021
LL133037
Corten
LL133038
Green RAL 6003
LL133039
Black RAL 9005
LL133067
Complete the CODE
OPTIC
D
Diff.
S
25°
M
40°
L
60°
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

noa_100_wall_optic_s
noa_100_wall_optic_s
noa_100_wall_optic_m
noa_100_wall_optic_m
noa_100_wall_optic_l
noa_100_wall_optic_l
noa_100_wall_optic_d
noa_100_wall_optic_d
noa_100_wall_honey_optic_l
noa_100_wall_honey_optic_l

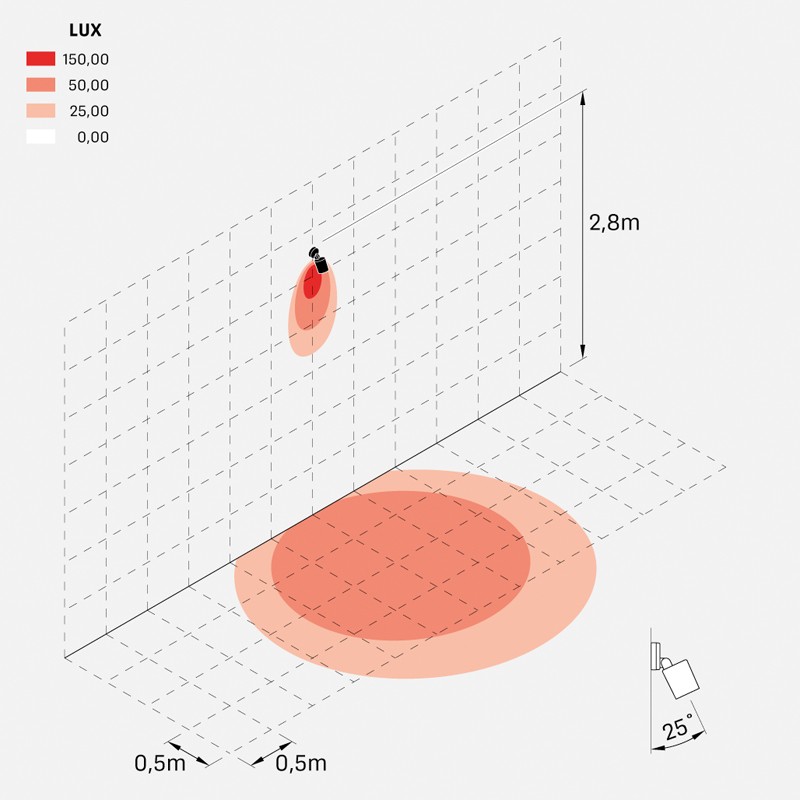

noa_100_wall_honey_optic_m
noa_100_wall_honey_optic_m

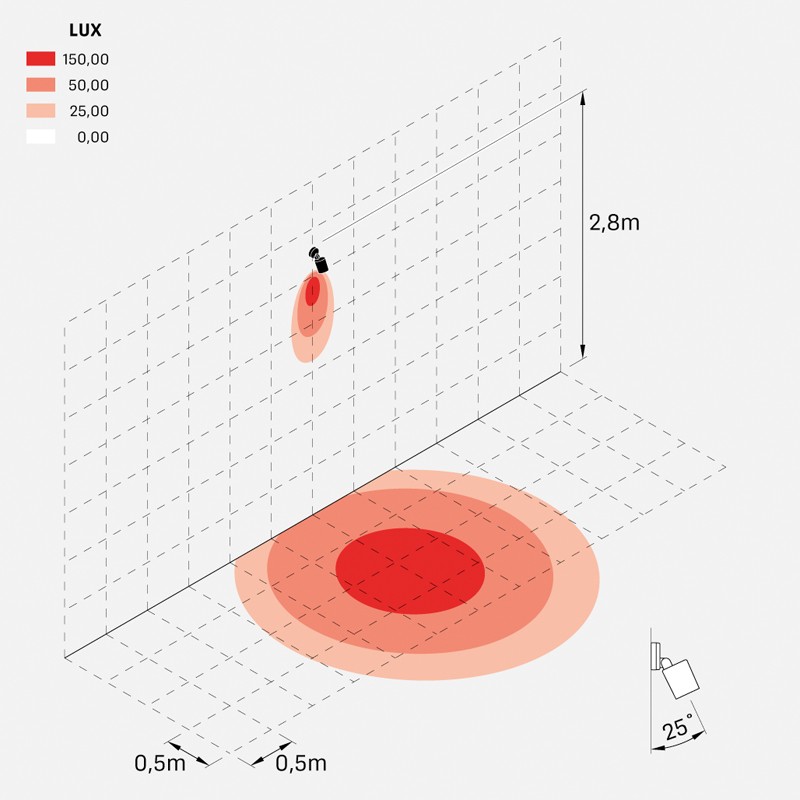

noa_100_wall_honey_optic_s
noa_100_wall_honey_optic_s
