Line 330
Available colors
Black Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten

Line 330

Suitable for outdoor use.
Integrated driver 220 - 240V and the latest generation of Led with ratings of up to 25W.
LINE, LINE DOWN e LINE 220 body and cover made of die-cast aluminium primary alloy; highly resistant to oxidization thanks to the zirconium-based passivation treatment and UV stabilized polyester resin coating.
LINE 330 upper black polycarbonate cap, injection moulded in-house.
Diffuser made of very thick optical polycarbonate, poliGLASS finish, injection moulded and subsequent manual finishing.
Silicone gaskets IP66.
A4 stainless steel nuts and bolts. Provision for safety screws.
Suitable for quick installation in standard posts Ø60 by means of stainless steel springs.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
No risk of photobiological damage, RG0 group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Polycarbonate
Ask for information
Lighting simulations
Line 330
  • IP 66
  • IK 10 20J xx9
  • CE

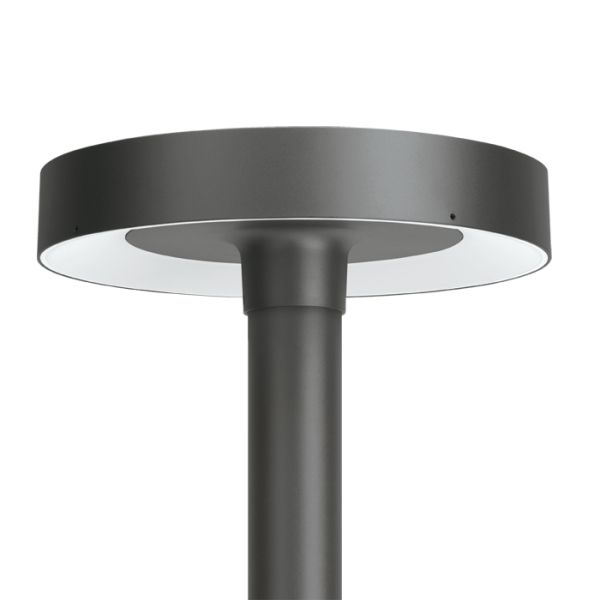

Upper black polycarbonate cap. Cut-off version with indirect light. Provided with 1m of prewired power cable H05RN-F.
Light beam
LINE 330
indiretto
Line 330
LED
W LM REAL LM COL. POLIGLASS
CODE 		Download
25 3000 2144
CL.II LED version with integrated ballast 220-240 V
Black
LL113200
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey High Tech RAL 9006
LL113201
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LL113202
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LL113203
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
25 3000 2144
CL.II LED version with integrated ballast 220-240 V Corridor function
Black
LL113205
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey High Tech RAL 9006
LL113206
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LL113207
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LL113208
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

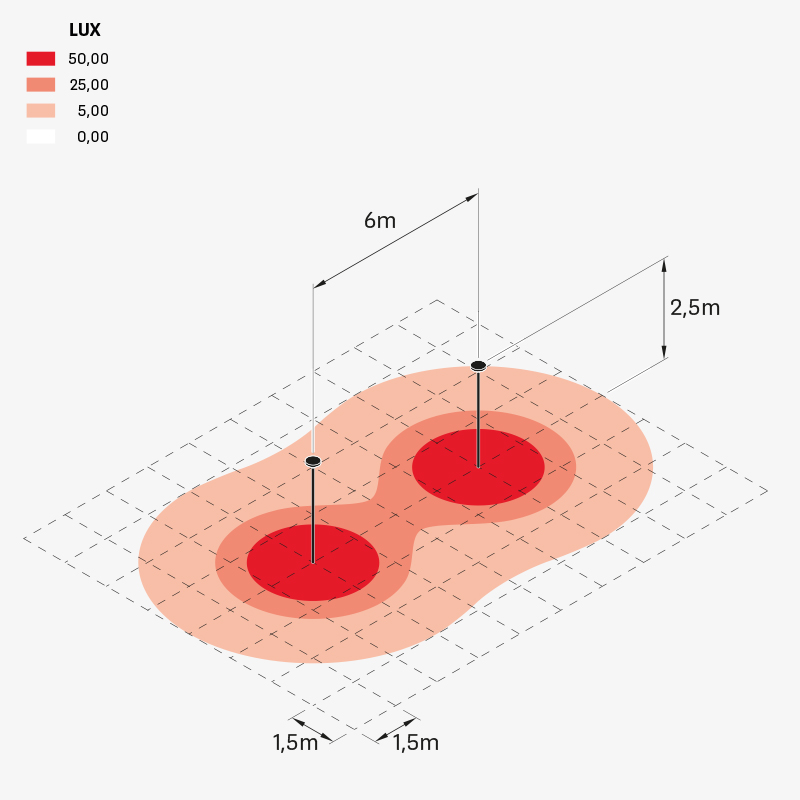

line330_H2500
line330_H2500

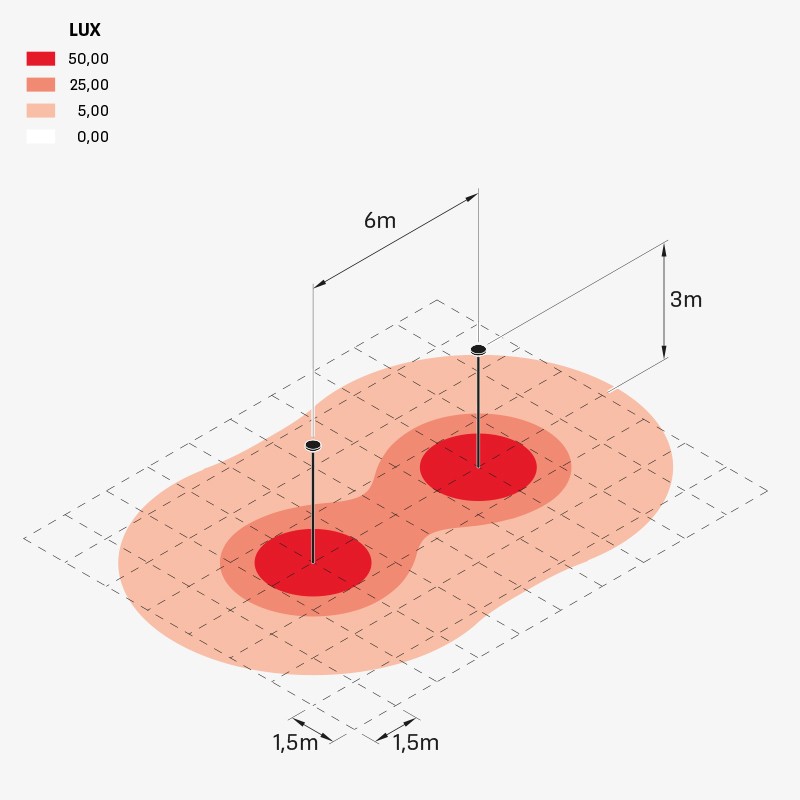

line_330_H3000
line_330_H3000

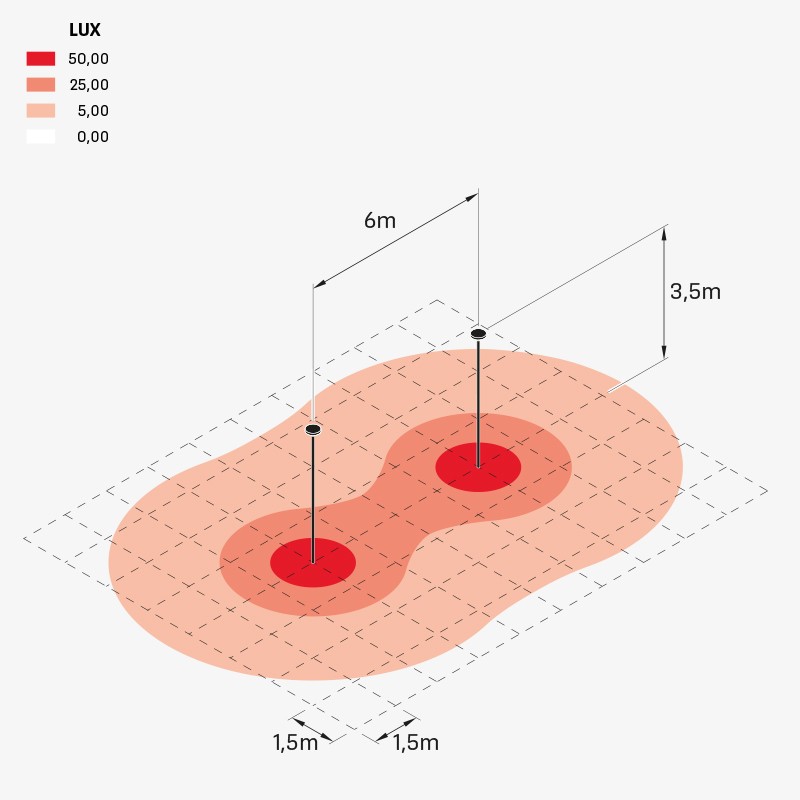

line_330_H3500
line_330_H3500
Line Line Line Down Line Down Line 220 Line 220 Kit 01 - Line Post H500 Kit 01 - Line Post H500 Kit 03 - Line Post H1500 Kit 03 - Line Post H1500 Kit 04 - Line Down Post H500 Kit 04 - Line Down Post H500 Kit 06 - Line Down Post H1500 Kit 06 - Line Down Post H1500 Kit 07 - Line 220 Post H500 Kit 07 - Line 220 Post H500 Kit 09 - Line 220 Post H1500 Kit 09 - Line 220 Post H1500 Line 220 Zero Line 220 Zero Kit 02 - Line Post H1000 Kit 02 - Line Post H1000 Kit 05 - Line Down Post H1000 Kit 05 - Line Down Post H1000 Kit 08 - Line 220 Post H1000 Kit 08 - Line 220 Post H1000
Base Ø170 mm for Still post Base Ø170 mm for Still post Retractable plate base Retractable plate base Template and fixing kit Still Post diam. 60 mm. Template and fixing kit Still Post diam. 60 mm. Box Line Box Line 3-pole coaxial terminal block 3-pole coaxial terminal block 3 way linear terminal block 3 way linear terminal block Still Still
