EVERYDAY
LIGHT
Kura X10
Available colors

Kura X10

New
Suitable for installation in plasterboard ceilings for indoor and outdoor use.
Polycarbonate body.
Die-cast primary aluminium heat sink EN-AB44100.
PMMA lenses. Recessed installation by means of springs.
External power supply.
Supplied with 0,20m PVC cable 2x0.25mm .
Dimming available. Stainless steel A4 or AISI 316L hardware.
LL codes: supplied with external IP20 driver. Direct power supply 220-240V.
LZ codes: power supply excluded.
LED 4000K (N), 3000K (3) and 2700K (2).
No photobiological risk, RG0 risk group exempt (EN62471).
IP 65
Outdoor e waterproof
Pre-wired
Pre-wired
CRI 95
CRI 95
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
PMMA
Kura X10
  • IP 65
  • IK 06 1J xx3
  • CE
LL codes: external driver IP20
LED
W LM REAL LM COL. TRASP.
CODE
Download
23 2050 1720
CL.II 220-240V REMOTE DRIVER INCLUDED REMOTE DRIVER INCLUDED
White from moulding
LL14709W
Black from moulding
LL14709B
23 2050 1720
CL.III 700mA - 30V 700mA - 30V
White from moulding
LZ14709W
Black from moulding
LZ14709B
Complete the CODE
OPTIC
S
18°
M
28°
L
52°
E
11 X 37°
LED COLOUR
N
4000K
3
3000K
2
2700K

Lighting simulations

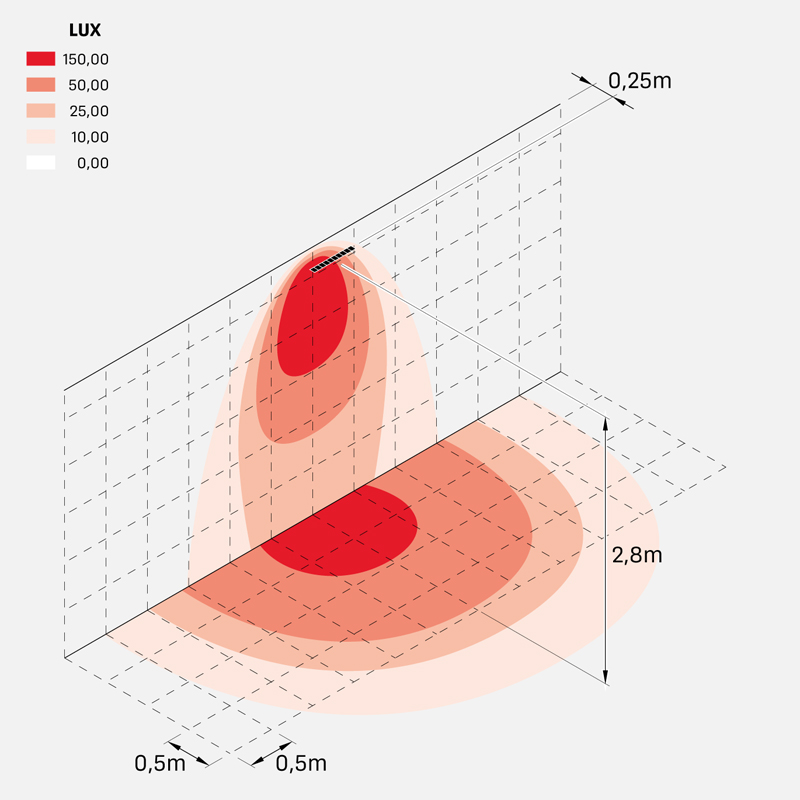

KURA_x10_optic_L
KURA_x10_optic_L
KURA_x10_optic_E
KURA_x10_optic_E
KURA_x10_optic_M
KURA_x10_optic_M
KURA_x10_optic_S
KURA_x10_optic_S
