Available colors

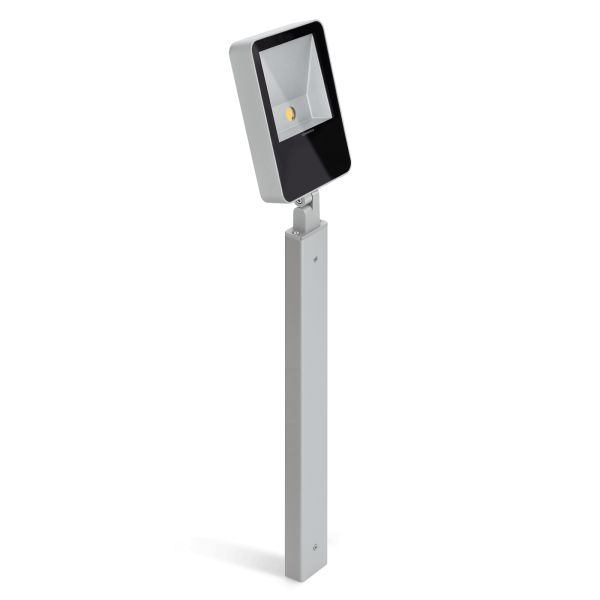

Kit 18 - Tag 210 Asimmetrico H 500
Kit-10/11/12: consisting of Tag 110 + Bracket. Inaccessible device, provided with 1m of prewired power cable H05RN-F. No risk of photobiological damage, RG0 group (EN62471).
Kit-13/14/15: consisting of Tag210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-16/17/18: consisting of assymetric Tag 210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Die-cast aluminum Body and joint highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminum reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.

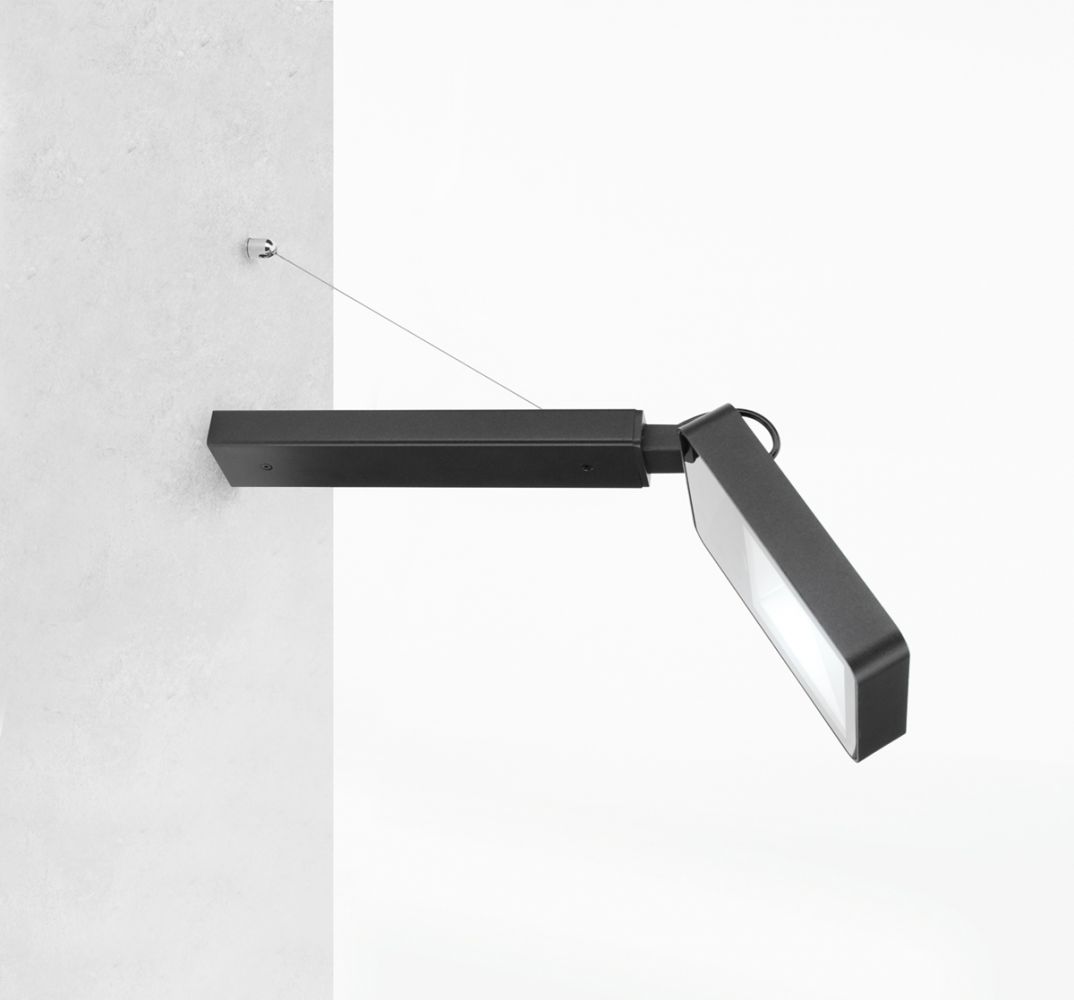

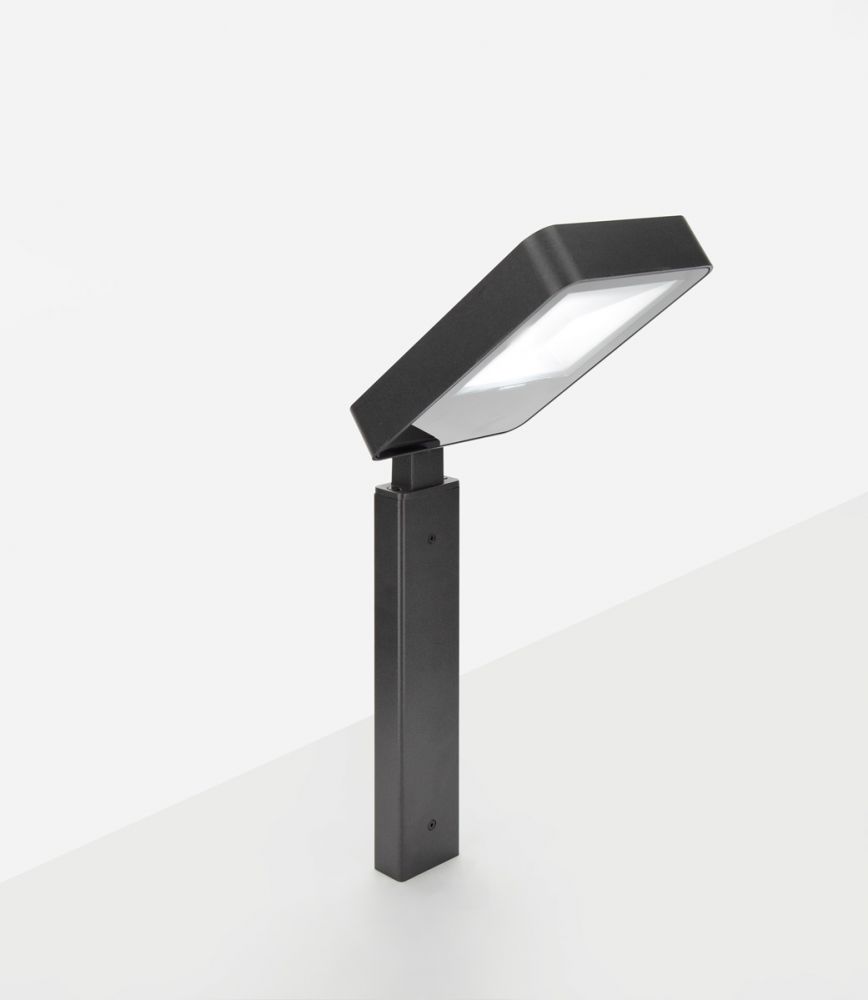

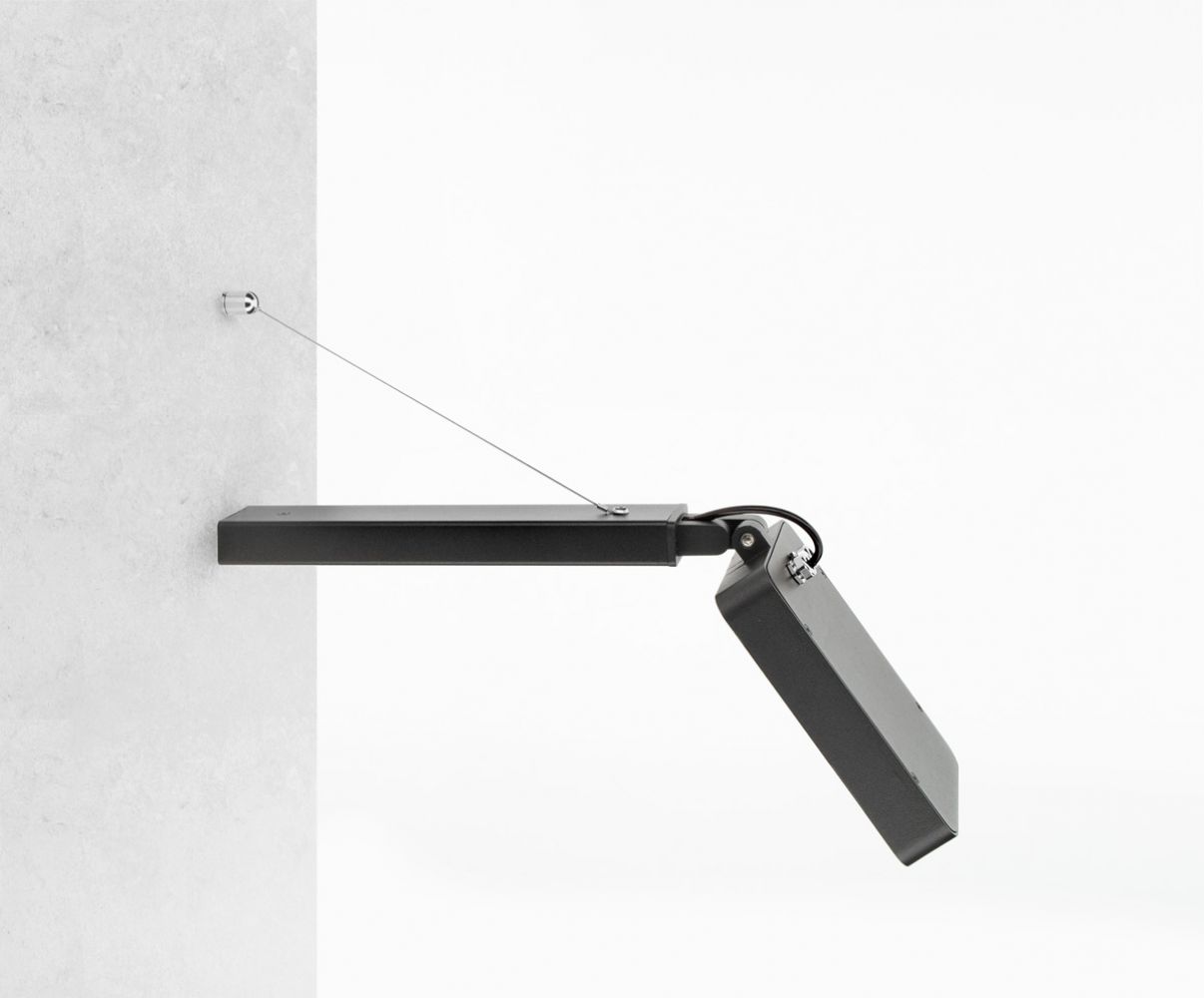

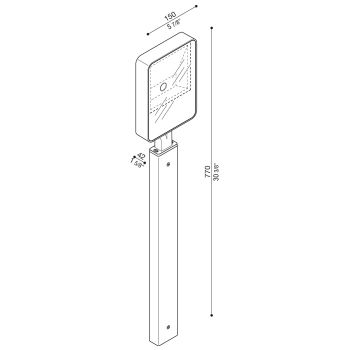

Possibility of installation Tag 110/210 on a post, height: 500 mm - 300 mm. - 160 mm., designed for wall or ceiling installation. Post made of extruded aluminum. Highly resistant to oxidization thanks to the zirconium based passivation process and the coating with UV-stabilised polyester resins. A4 stainless steel nuts and bolts. Complete with fastening kit and stainless steel cable.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
expand
Kit-13/14/15: consisting of Tag210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-16/17/18: consisting of assymetric Tag 210 + Bracket. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Die-cast aluminum Body and joint highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminum reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.
Possibility of installation Tag 110/210 on a post, height: 500 mm - 300 mm. - 160 mm., designed for wall or ceiling installation. Post made of extruded aluminum. Highly resistant to oxidization thanks to the zirconium based passivation process and the coating with UV-stabilised polyester resins. A4 stainless steel nuts and bolts. Complete with fastening kit and stainless steel cable.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
Outdoor e waterproof
Direct power supply
Pre-wired
Sea Treatment on request
Years warranty on LED circuit
Diffuser
Serigraphed glass
