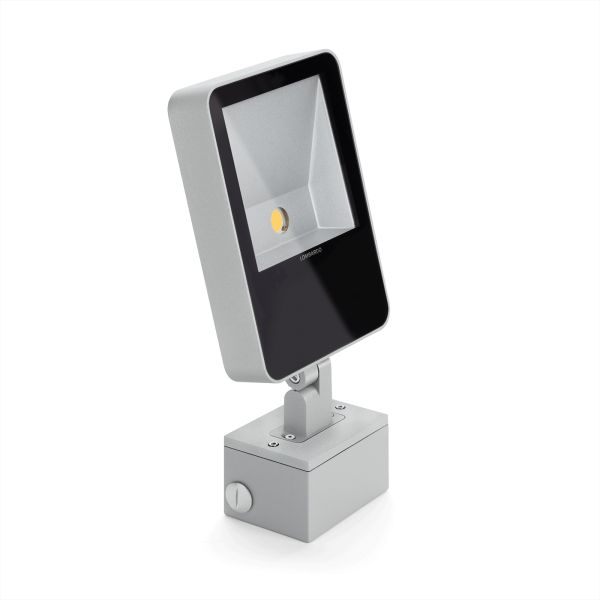

Kit 03 - Tag 210 Asimmetrico Box
Available colors
White RAL 9010 Grey High Tech RAL 9006 Grey anthracite RAL 7021 Corten

Kit 03 - Tag 210 Asimmetrico Box

Kit-01: consisting of Tag 110 + electrical junction box. Inaccessible device, provided with 1m of prewired power cable H05RN-F. No risk of photobiological damage, RG0 group (EN62471).
Kit-02: consisting of Tag210 + electrical junction box. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Kit-03: consisting of assymetric Tag 210 + electrical junction box. Prearranged for double power input. Provided with 1m of prewired power cable H05RN-F. No photobiological risk under normal operating conditions, RG1 low risk group (EN62471).
Also suitable for outdoor use. Body, joint and box in die-cast aluminium highly resistant to oxidation thanks to the zirconium based passivation treatment and the UV stabilized polyester resin coating. Heat tempered and serigraphed glass diffuser. Aluminium reflector. Silicone gaskets to maintain IP66 rating. A4 stainless steel nuts and bolts.
180° angle adjustment.
LED 4000K (N), 3000K (3) or 2700K (2). Integral ballast 220-240V.
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Pre-wired
Pre-wired
Sea Treatment on request
Sea Treatment on request
Years warranty on LED circuit
Years warranty on LED circuit
Available from
01/07/2017
Diffuser
Serigraphed glass
Ask for information
Kit 03 - Tag 210 Asimmetrico Box
  • IP 66
  • IP 20
  • IK 06 1J xx3
  • CE
Kit consisting of the current codes TAG 210 ASIMMETRICO + LB1150007/8/9/10.
Box IP20.
BORDO MARE: add S to the end of the selected code including LED colour to have the product supplied with sea treatment against salt spray.
Light beam
asimmetrico
Kit 03 - Tag 210 Asimmetrico Box
LED
W LM REAL LM COL. TRASP.
CODE 		Download
25 3500 2386
CL.I LED version with integrated ballast 220-240 V
White RAL 9010
LL115016

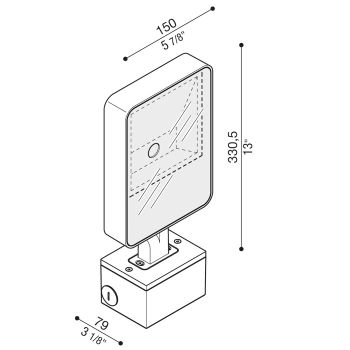

Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey High Tech RAL 9006
LL115017
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Grey anthracite RAL 7021
LL115018
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Corten
LL115019
Photometric curve CE certificate Catalogue page Instruction sheet Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
LED COLOUR
N
4000K
3
3000K
2
2700K
Tag 110 Tag 110 Tag 210 Tag 210 Tag 210 Asimmetrico Tag 210 Asimmetrico Kit 01 - Tag 110 Box Kit 01 - Tag 110 Box Kit 02 - Tag 210 Box Kit 02 - Tag 210 Box Tag 110 White Tag 110 White Tag 210 White Tag 210 White Kit 04 - Tag 110 Garden Kit 04 - Tag 110 Garden Kit 05 - Tag 210 Garden Kit 05 - Tag 210 Garden Kit 06 - Tag 210 Asimmetrico Garden Kit 06 - Tag 210 Asimmetrico Garden Kit 07 - Tag 110 Post Kit 07 - Tag 110 Post Kit 08 - Tag 210 Post Kit 08 - Tag 210 Post Kit 09 - Tag 210 Asimmetrico Post Kit 09 - Tag 210 Asimmetrico Post Kit 10 - Tag 110 H160 Kit 10 - Tag 110 H160 Kit 11 - Tag 110 H300 Kit 11 - Tag 110 H300 Kit 12 - Tag 110 H500 Kit 12 - Tag 110 H500 Kit 13 - Tag 210 H160 Kit 13 - Tag 210 H160 Kit 14 - Tag 210 H300 Kit 14 - Tag 210 H300 Kit 15 - Tag 210 H500 Kit 15 - Tag 210 H500 Kit 16 - Tag 210 Asimmetrico H160 Kit 16 - Tag 210 Asimmetrico H160 Kit 17 - Tag 210 Asimmetrico H300 Kit 17 - Tag 210 Asimmetrico H300 Kit 18 - Tag 210 Asimmetrico H 500 Kit 18 - Tag 210 Asimmetrico H 500 Kit 19 - Tag 110 Side Post Kit 19 - Tag 110 Side Post Kit 20 - Tag 210 Side Post Kit 20 - Tag 210 Side Post Kit 21 - Tag 210 Asimmetrico Side Post Kit 21 - Tag 210 Asimmetrico Side Post Tag 210 Power Tag 210 Power
3-pole coaxial terminal block 3-pole coaxial terminal block 3 way linear terminal block 3 way linear terminal block
