EVERYDAY
LIGHT

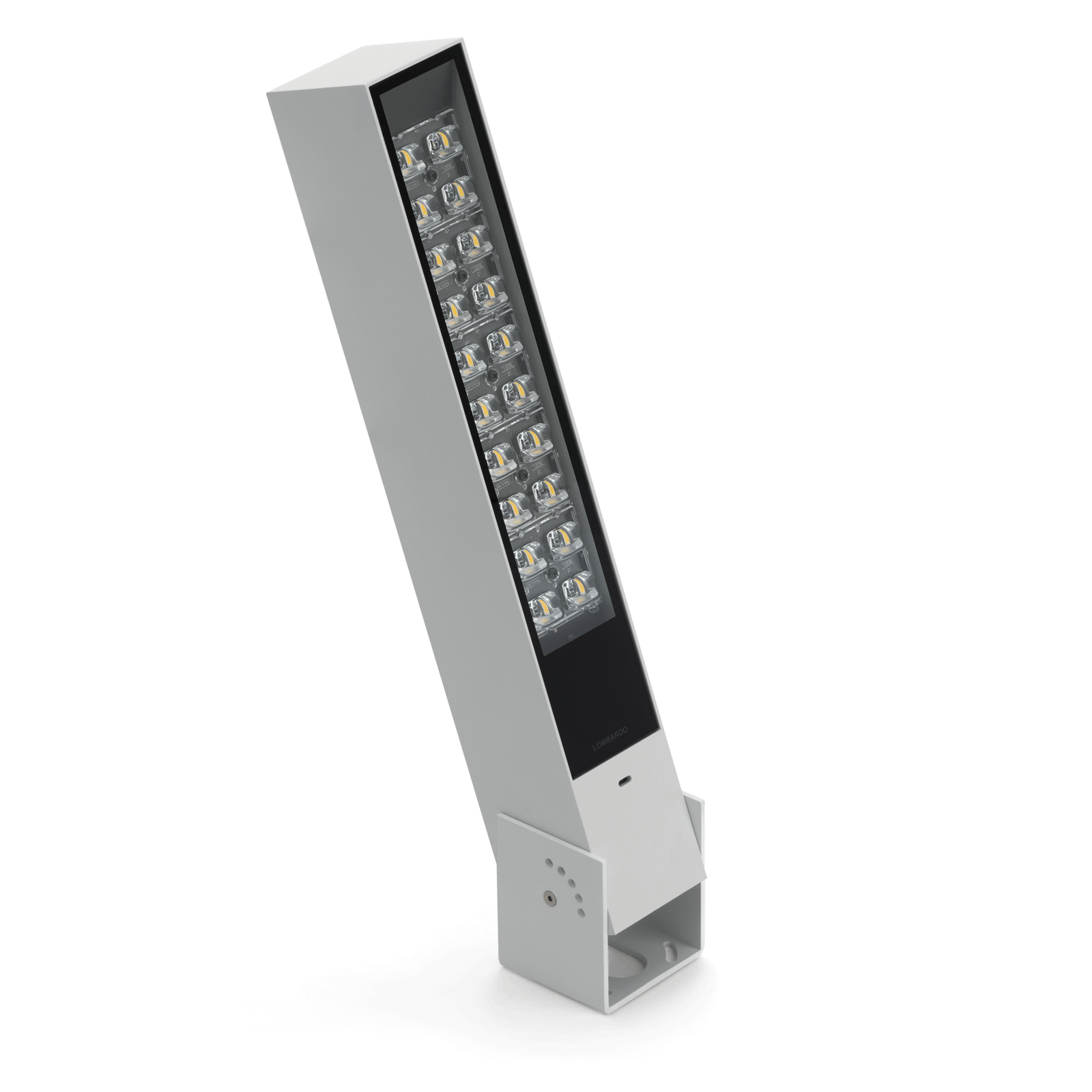

Flag 430 Reg
Available colors

Flag 430 Reg

Die-cast aluminium body; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilised polyester resin coating. Screen-printed tempered glass diffuser. Silicone gaskets.
Anodized aluminium reflector. A4 stainless steel nuts and bolts.
Inaccessible device supplied with quick connector plug-socket IP68 with anti-condensation barrier.
LED 4000K (N), 3000K (3) or 2700K (2).
No photobiological risk, RG0 risk group (EN62471).
IP 66
Outdoor e waterproof
Direct power supply
Direct power supply
Dimmable
Dimmable
Sea Treatment
Sea Treatment
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Flag 430 Reg
  • IP 66
  • IK 08 5J xx7
  • CE
Supplied with 5-step adjustment bracket in painted aluminium.
LED
W LM REAL LM COL. GLASS
CODE
Download
35 4575 Max 3420
CL.II LED version with integrated ballast 220-240 V
White RAL 9010
LL14012W
Grey High Tech RAL 9006
LL14012G
Grey anthracite RAL 7021
LL14012E
Corten
LL14012K
35 4575 Max 3420
CL.II LED version with integrated ballast 220-240 V DALI2
White RAL 9010
LM14012W
Grey High Tech RAL 9006
LM14012G
Grey anthracite RAL 7021
LM14012E
Corten
LM14012K
Complete the CODE
OPTIC
S
Spot-32°
W
Wide-95°
A
Asymm.-140°X45°
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K
