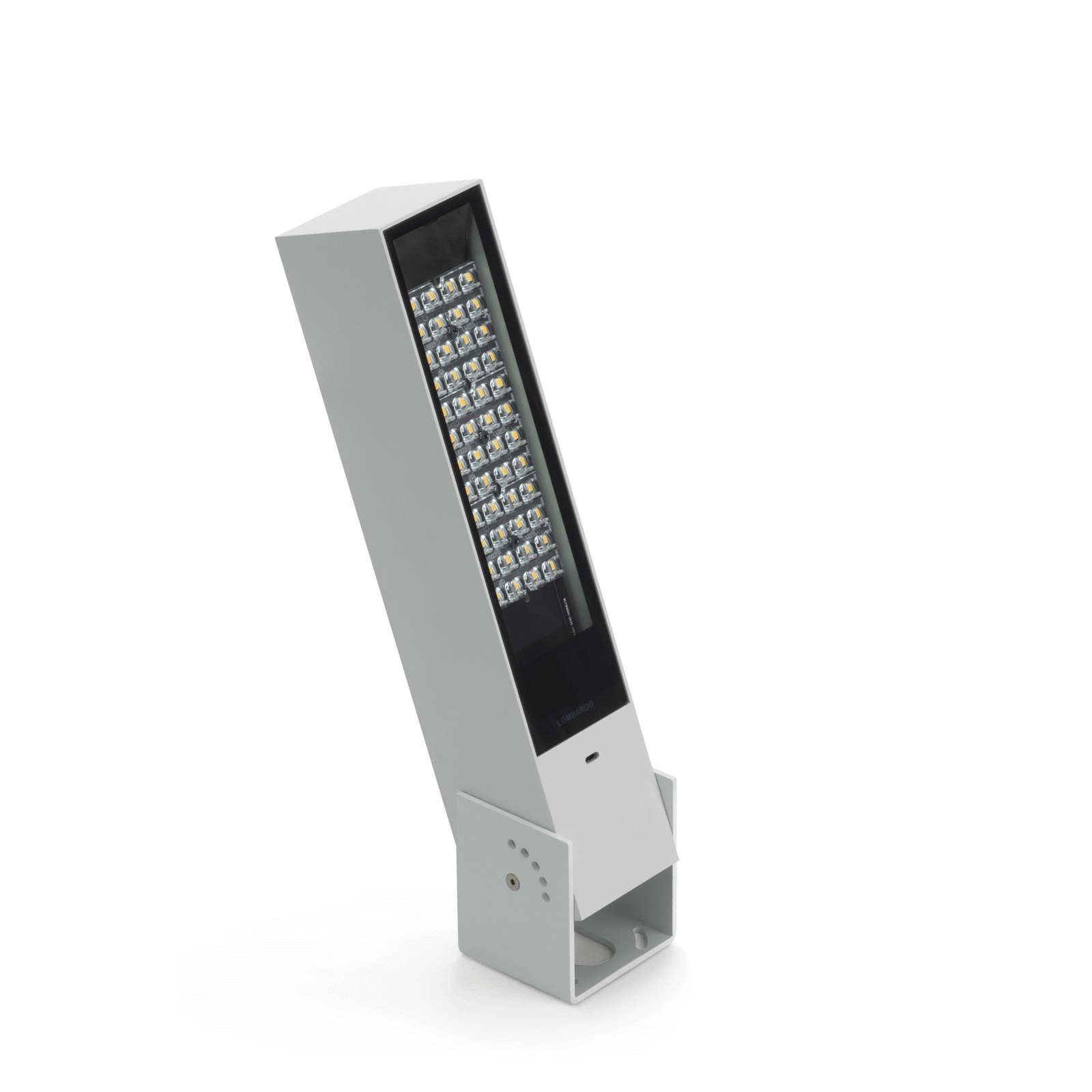

Flag 330 Reg
Available colors

Flag 330 Reg

Die-cast aluminium body; high resistance to oxidation thanks to cataphoresis treatment and UV-stabilised polyester resin coating. Screen-printed tempered glass diffuser. Silicone gaskets. Anodized aluminium reflector. A4 stainless steel nuts and bolts. Inaccessible device supplied with quick connector plug-socket IP68 with anti-condensation barrier.
Available 24V version (not available for Flag 330 Zero)
LED 4000K (N), 3000K (3) or 2700K (2).
No photobiological risk, RG0 risk group (EN62471).
IP 66
Direct power supply
Direct power supply
Dimmable
Dimmable
Sea Treatment
Sea Treatment
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Serigraphed glass
Installable on post 60
Flag 330 Reg
  • IP 66
  • IK 07 2J xx5
  • CE
Supplied with 5-step adjustment bracket in painted aluminium.
LED
W LM REAL LM COL. GLASS
CODE
19 2850 Max 1980
CL.II LED version with integrated ballast 220-240 V
White RAL 9010
LL14010W
Grey High Tech RAL 9006
LL14010G
Grey anthracite RAL 7021
LL14010E
Corten
LL14010K
19 2850 Max 1980
CL.II LED version with integrated ballast 220-240 V DALI2
White RAL 9010
LM14010W
Grey High Tech RAL 9006
LM14010G
Grey anthracite RAL 7021
LM14010E
Corten
LM14010K
19 2850 Max 1980
CL.III 24V 24V
White RAL 9010
LT14010W
Grey High Tech RAL 9006
LT14010G
Grey anthracite RAL 7021
LT14010E
Corten
LT14010K
Complete the CODE
OPTIC
S
30°
W
Wide
A
Asymm.
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

Lighting simulations

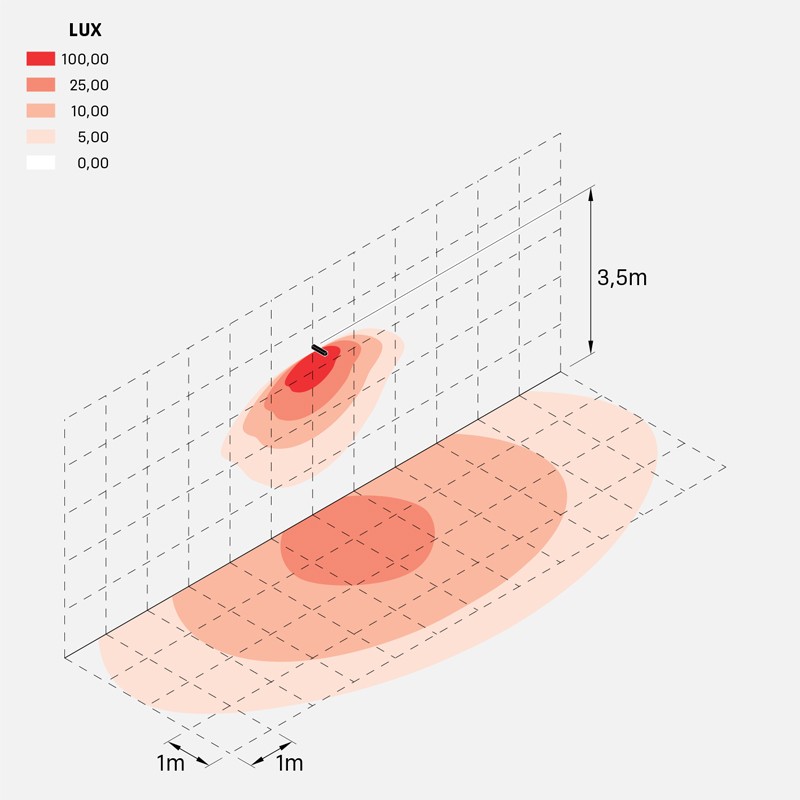

flag_reg_330_optic_a
flag_reg_330_optic_a

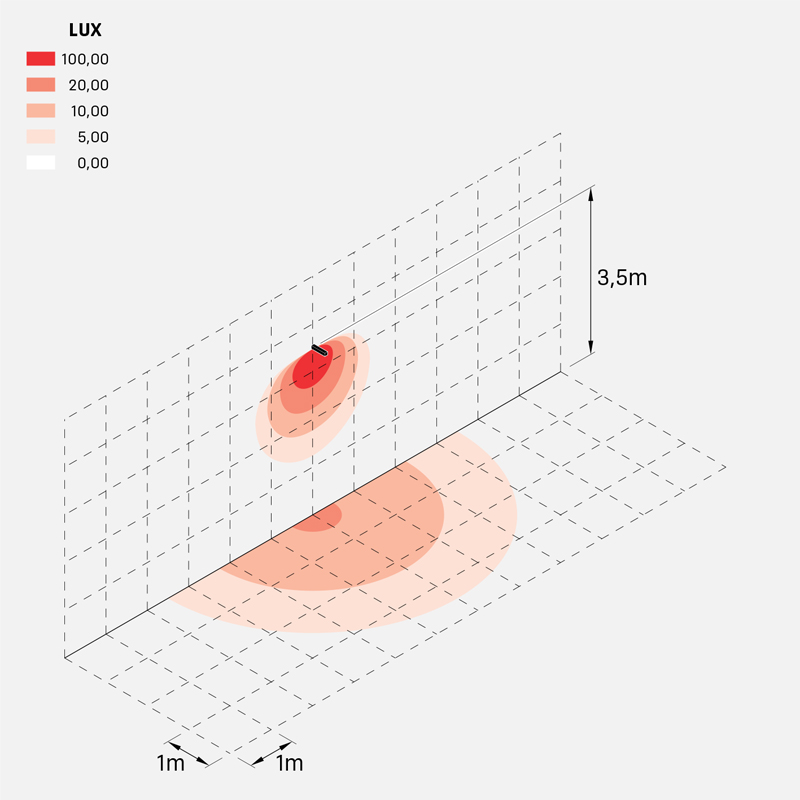

flag_reg_330_optic_d
flag_reg_330_optic_d

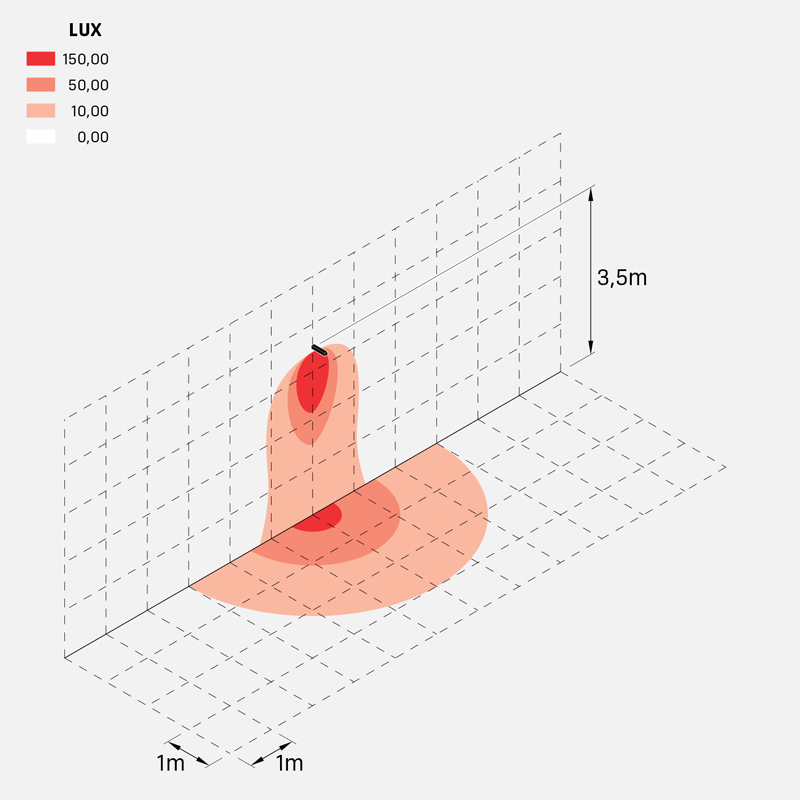

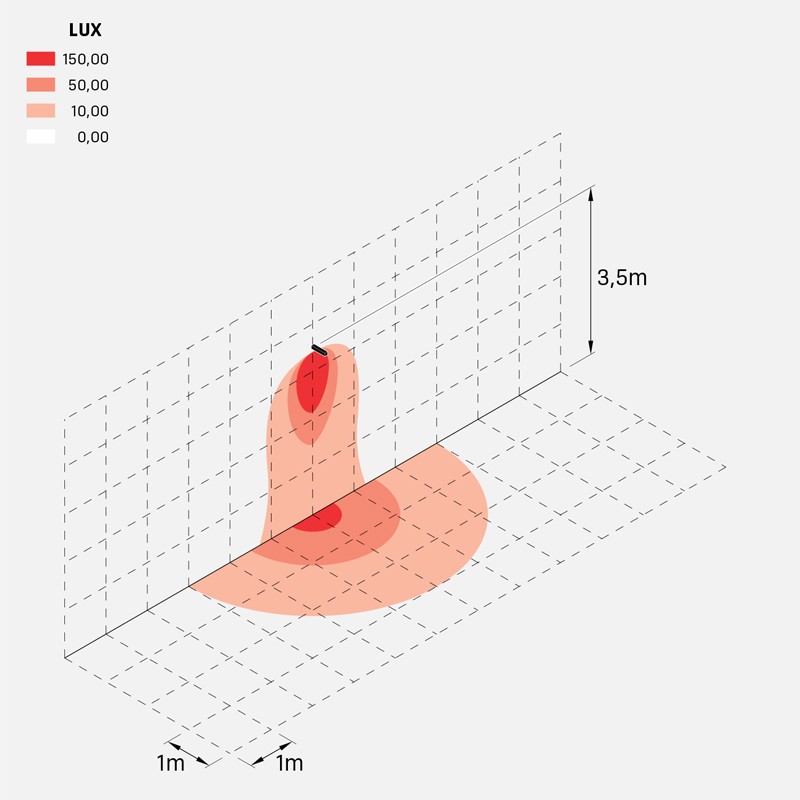

flag_reg_330_optic_s
flag_reg_330_optic_s

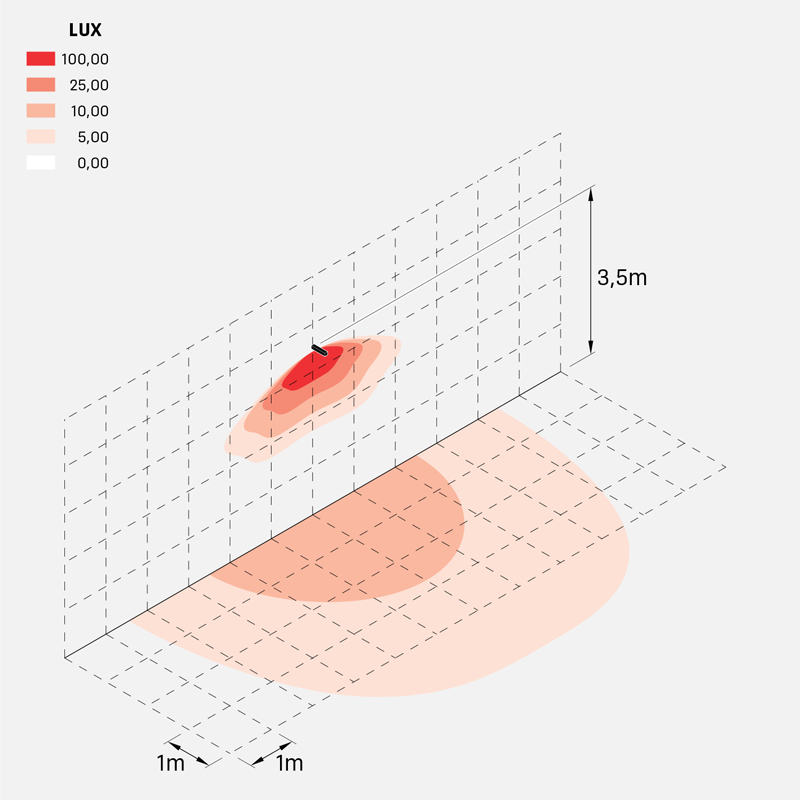

flag_reg_330_optic_w
flag_reg_330_optic_w
