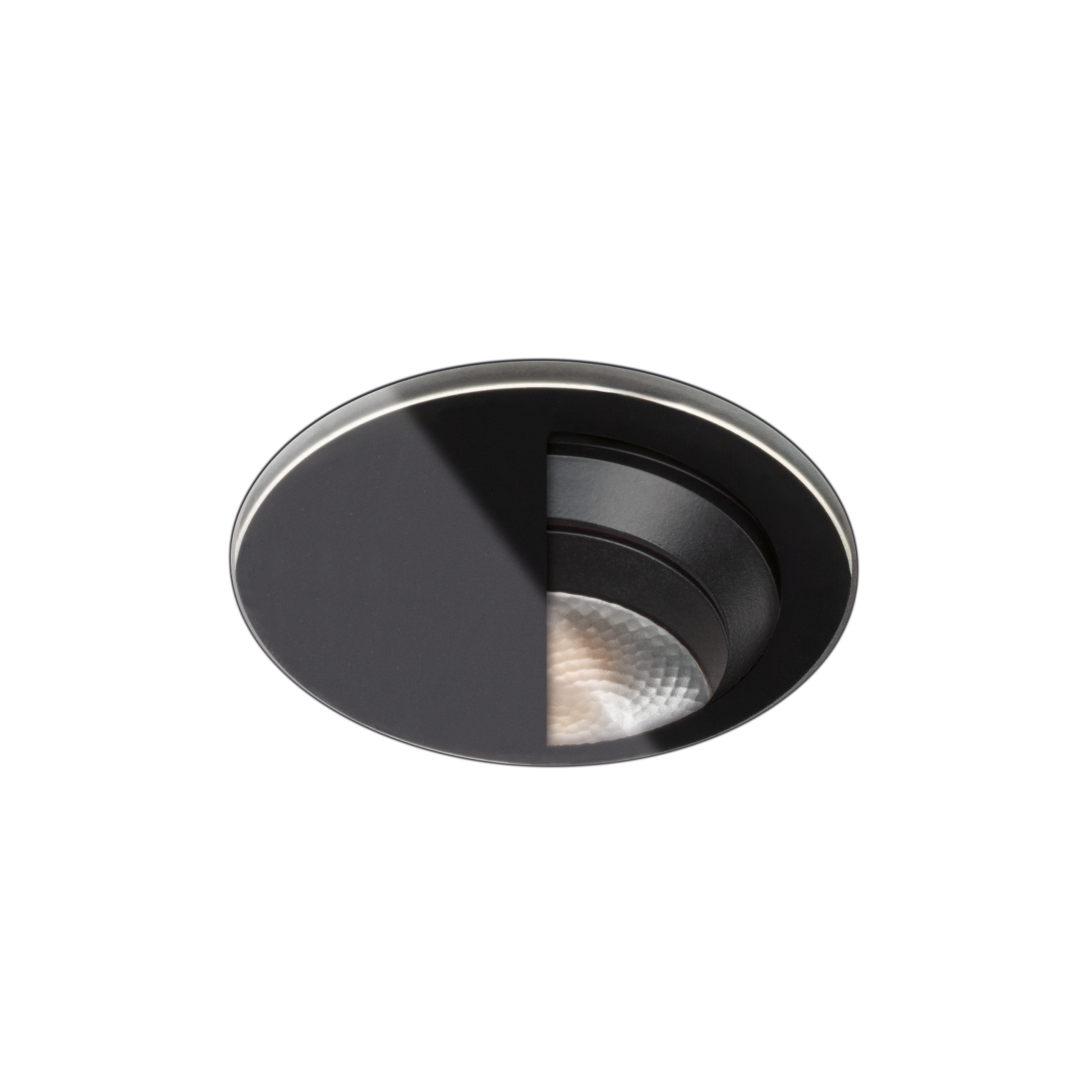

CNC 50 2.0 Trimless T Asimmetrico

New
IP 67
Outdoor e waterproof
Aquastop
Aquastop
Dimmable
Dimmable
Anodisation
Anodisation
Pre-wired
Pre-wired
CRI 90
CRI 90
Years warranty on LED circuit
Years warranty on LED circuit
Diffuser
Transparent glass
Ask for information
Lighting simulations
CNC 50 2.0 Trimless T Asimmetrico
  • IP 67
  • IK 09 10J xx7
  • Temp. max on diffuser 47°C
  • CE
Optic D not available for Honeycomb version.
Light beam
asimmetrico
CNC 50 2.0 Trimless T Asimmetrico
LED
W LM REAL LM COL. GLASS
CODE 		Download
6,5 694 280
CL.III 24V 24V
LT15857
CE certificate UKCA certificate Drawings, photographs, descriptions Maintenance and disposal Family range
6,5 694 131
CL.III 24V 24V HONEYCOMB
LT15857H
CE certificate UKCA certificate Drawings, photographs, descriptions Maintenance and disposal Family range
Complete the CODE
OPTIC
S
20°
M
30°
L
45°
D
Diff.
LED COLOUR
N
4000K
3
3000K
2
2700K
1
2200K

Lighting simulations

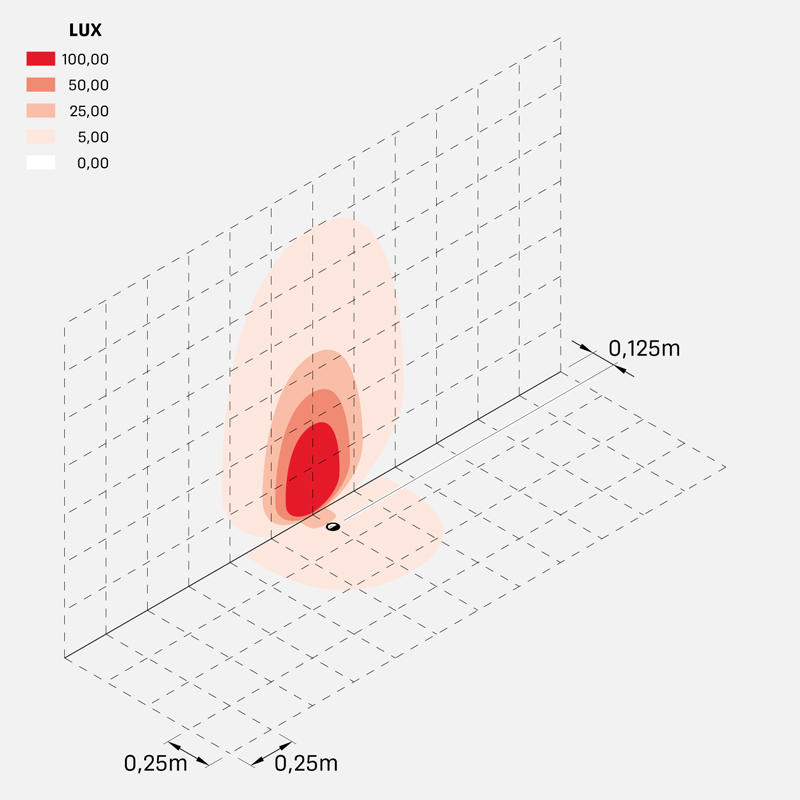

cnc_50t_asimm_20_trimless_optic_D
cnc_50t_asimm_20_trimless_optic_D

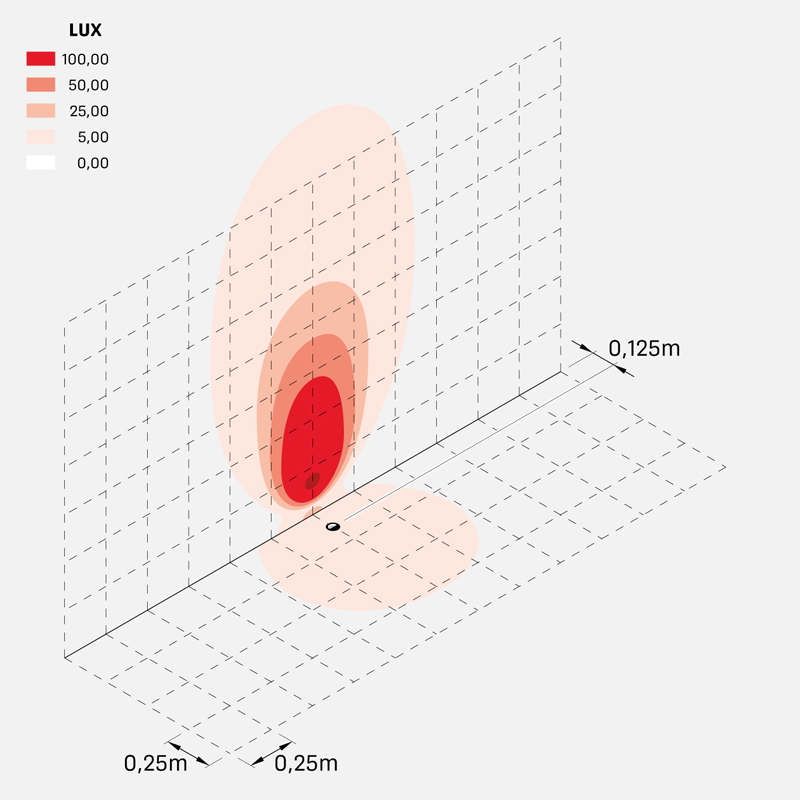

cnc_50t_asimm_20_trimless_optic_L
cnc_50t_asimm_20_trimless_optic_L

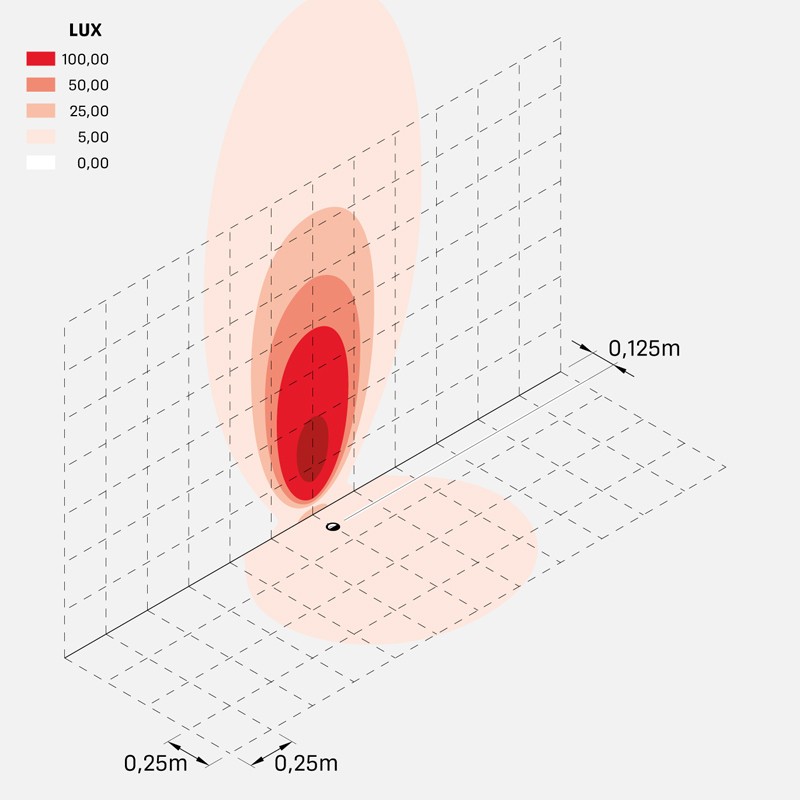

cnc_50t_asimm_20_trimless_optic_M
cnc_50t_asimm_20_trimless_optic_M

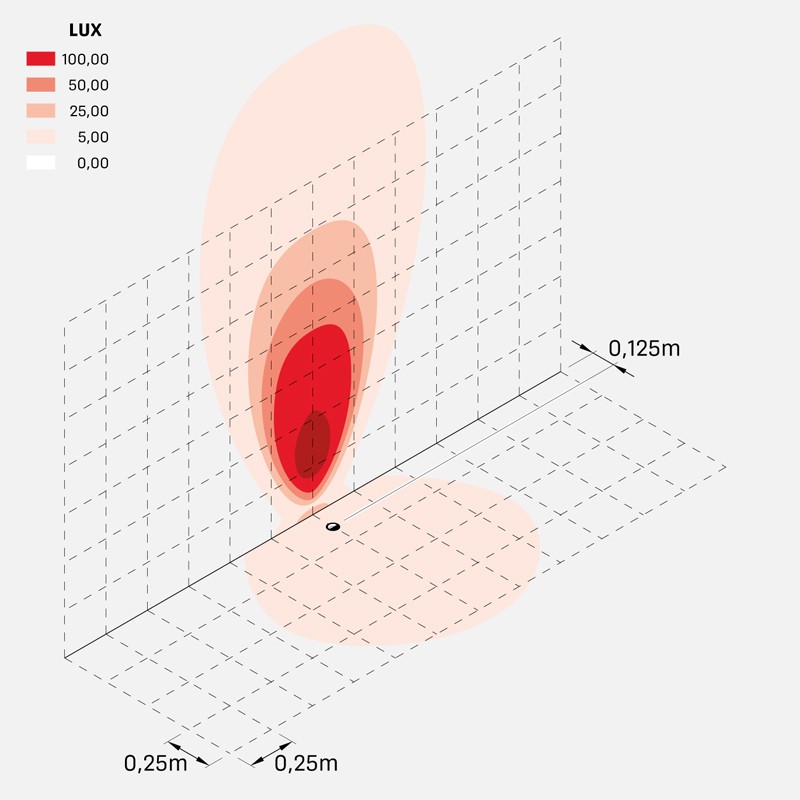

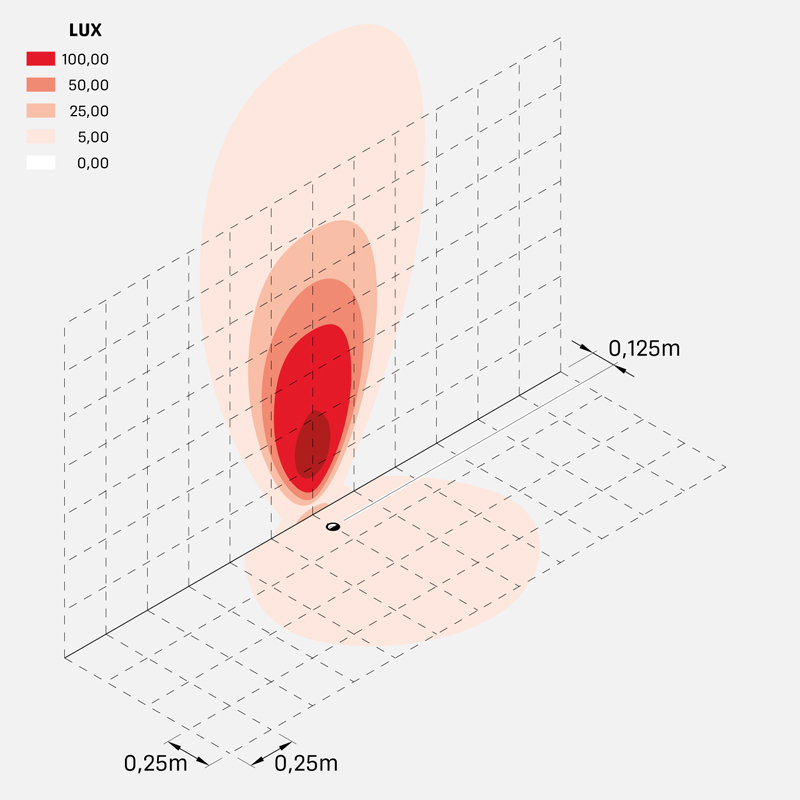

cnc_50t_asimm_20_trimless_optic_S
cnc_50t_asimm_20_trimless_optic_S

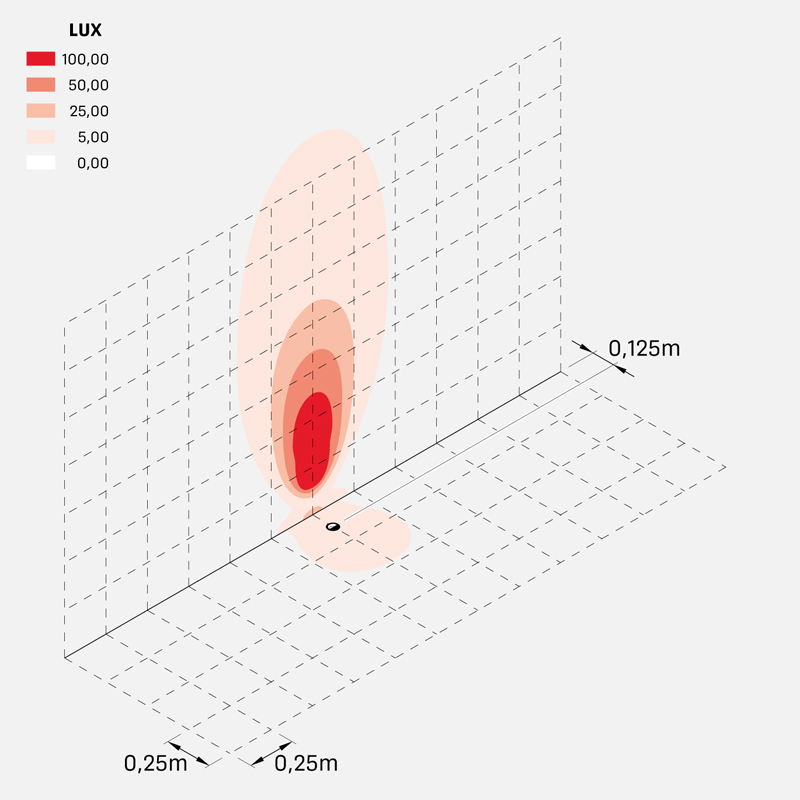

cnc_50t_asimm_20_trimless_honeycomb_optic_L
cnc_50t_asimm_20_trimless_honeycomb_optic_L

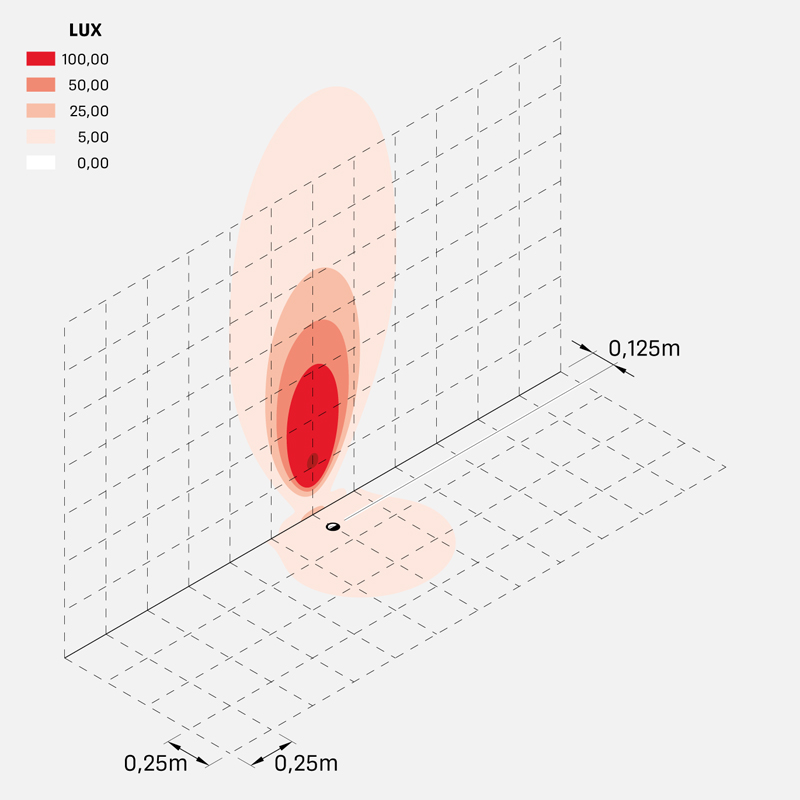

cnc_50t_asimm_20_trimless_honeycomb_optic_M
cnc_50t_asimm_20_trimless_honeycomb_optic_M

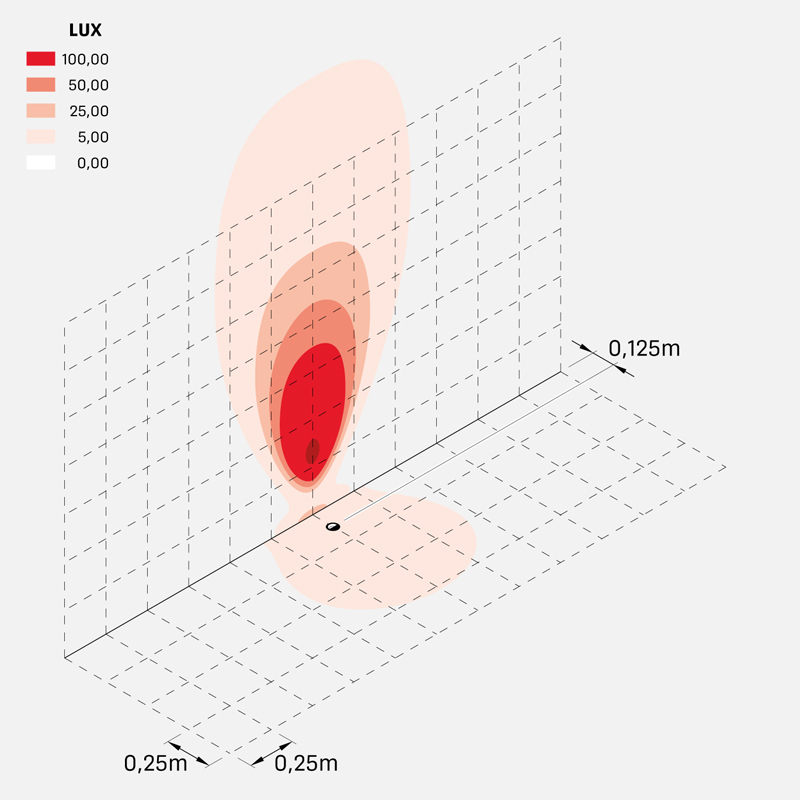

cnc_50t_asimm_20_trimless_honeycomb_optic_S
cnc_50t_asimm_20_trimless_honeycomb_optic_S
CNC 35 T CNC 35 T CNC 35 Q CNC 35 Q CNC 35 Top S CNC 35 Top S CNC 35 Top L CNC 35 Top L CNC 35 Mask CNC 35 Mask CNC 35 Swing CNC 35 Swing CNC 50 Swing CNC 50 Swing CNC 50 T Up CNC 50 T Up CNC 35 T Up CNC 35 T Up CNC 35 Q Up CNC 35 Q Up CNC 50 T CNC 50 T CNC 50 Top L CNC 50 Top L CNC 50 Top 2L CNC 50 Top 2L CNC 35 Swing Spot CNC 35 Swing Spot CNC 25 T CNC 25 T CNC 25 Q CNC 25 Q CNC 100 L CNC 100 L CNC 100 2L CNC 100 2L CNC 100 Up CNC 100 Up CNC 120 T CNC 120 T CNC 99 CL CNC 99 CL CNC 99 C2L CNC 99 C2L CNC 99 C4L CNC 99 C4L CNC 99 C180 CNC 99 C180 CNC 99 C Up CNC 99 C Up CNC 150 CNC 150 CNC 99 QL CNC 99 QL CNC 99 Q2L CNC 99 Q2L CNC 99 Q4L CNC 99 Q4L CNC 49 CL CNC 49 CL CNC 49 C2L CNC 49 C2L CNC 49 C4L CNC 49 C4L CNC 49 C180 CNC 49 C180 CNC 49 QL CNC 49 QL CNC 49 Q2L CNC 49 Q2L CNC 49 Q4L CNC 49 Q4L CNC 25 2.0 T CNC 25 2.0 T CNC 25 2.0 Q CNC 25 2.0 Q CNC 35 2.0 T CNC 35 2.0 T CNC 50 2.0 T CNC 50 2.0 T CNC 35 2.0 Swing Superficie CNC 35 2.0 Swing Superficie CNC 35 2.0 Swing CNC 35 2.0 Swing CNC 35 2.0 Swing Garden 40 CNC 35 2.0 Swing Garden 40 CNC 35 2.0 Swing Garden 100 CNC 35 2.0 Swing Garden 100 CNC 35 2.0 Swing Post 40 CNC 35 2.0 Swing Post 40 CNC 35 2.0 Swing Post 100 CNC 35 2.0 Swing Post 100 CNC 35 2.0 Q CNC 35 2.0 Q CNC 25 2.0 Q Full Resin CNC 25 2.0 Q Full Resin CNC 25 2.0 T Full Resin CNC 25 2.0 T Full Resin CNC 35 2.0 Q Full Resin CNC 35 2.0 Q Full Resin CNC 35 2.0 T Full Resin CNC 35 2.0 T Full Resin CNC 50 2.0 T Full Resin CNC 50 2.0 T Full Resin CNC Oval CNC Oval CNC Oval Superficie CNC Oval Superficie CNC Oval Garden 40 CNC Oval Garden 40 CNC Oval Garden 100 CNC Oval Garden 100 CNC Oval Post 40 CNC Oval Post 40 CNC Oval Post 100 CNC Oval Post 100 CNC 35 2.0 Trimless T CNC 35 2.0 Trimless T CNC 35 2.0 Trimless T Asimmetrico CNC 35 2.0 Trimless T Asimmetrico CNC 35 2.0 Trimless Q CNC 35 2.0 Trimless Q CNC 35 2.0 Trimless Q Asimmetrico CNC 35 2.0 Trimless Q Asimmetrico CNC 50 2.0 T Trimless CNC 50 2.0 T Trimless CNC 50 2.0 Trimless Q CNC 50 2.0 Trimless Q CNC 50 2.0 Trimless Q Asimmetrico CNC 50 2.0 Trimless Q Asimmetrico CNC 50 Swing Spot CNC 50 Swing Spot
CNC 50 / INC 50 ballasts in constant tension 24V avaiable CNC 50 / INC 50 ballasts in constant tension 24V avaiable Cable type H05RN-F 2x0,75 Cable type H05RN-F 2x0,75
